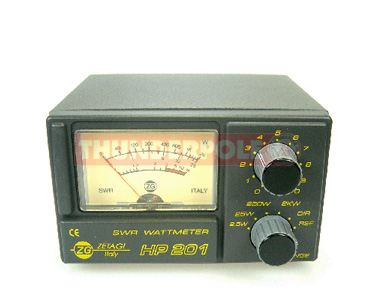

Zetagi HP 201 SWR Meter
Zetagi

Zetagi HP 201 SWR Meter


Ref:  08026
Brand:  Zetagi

Weight:  543 g

Availability



Product information


The Zetagi HP 201 is a combination SWR and power meter measuring SWR between 3 to 200 MHz making it suitable as an inexpensive SWR meter for HF and VHF as well as the CB bands.

Power reading is for 26-30 MHz only and on this updated model measures in 4 increments, 2.5/25/250 and 2000 watts.

Specifications

  • SWR Meter / Power Meter
  • Frequency Range:
  • 3-200 MHz
  • Impedance: 52 ohms
  • Type: Directional coupler on "strip line"
  • Loss: almost nothing <0.05dB
  • Instrument: with large 50uA class 1.5
  • Accuracy:
  • S.W.R. +/- 5%,
  • Power meter +/- 10%
  • Max Power: 2 KW PEP
  • Size: 130mm (w) x 80mm (h) x 140mm (d)
