Panorama MMR-5F | 4'' Mag Mount | FME Jack
Panorama MMR-5F | 4'' Mag Mount | FME JackPanorama MMR-5F | 4'' Mag Mount | FME JackPanorama MMR-5F | 4'' Mag Mount | FME Jack


Panorama MMR-5F | 4" Mag Mount | FME Jack


Ref:  32085

Availability:



Product information

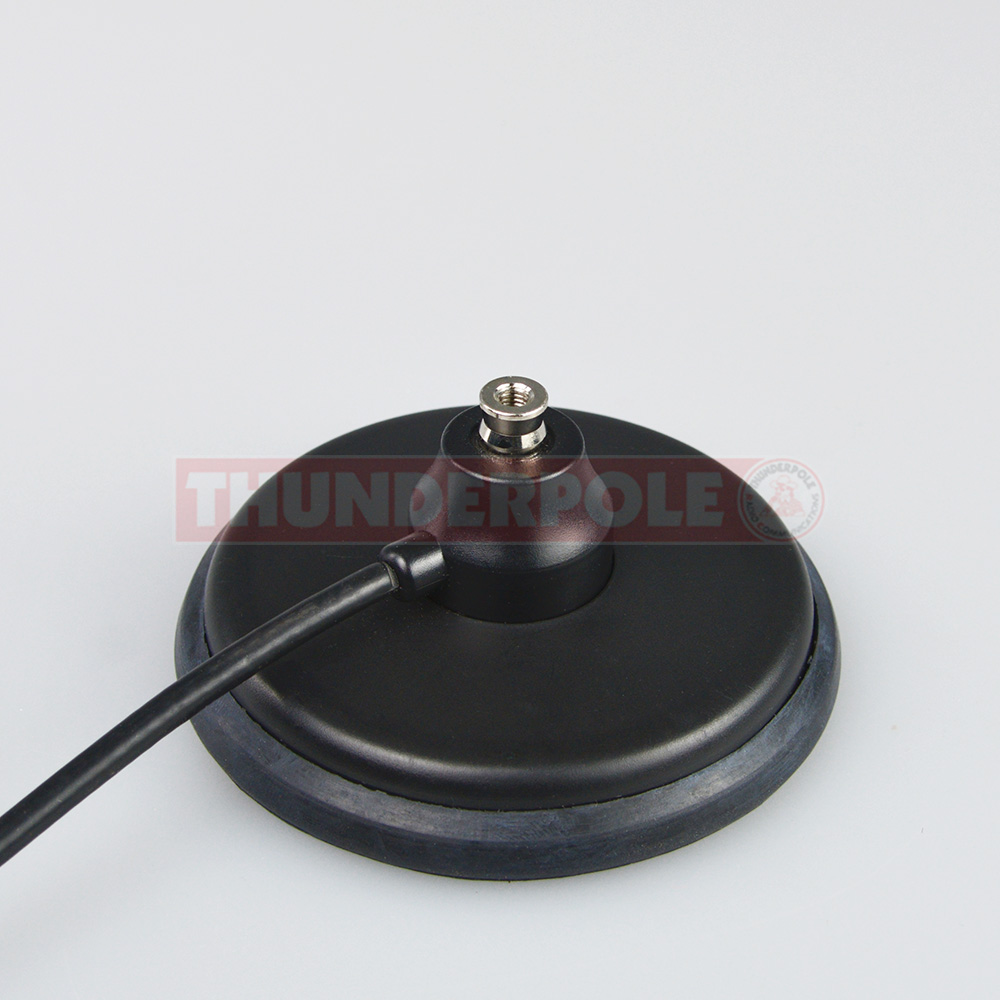

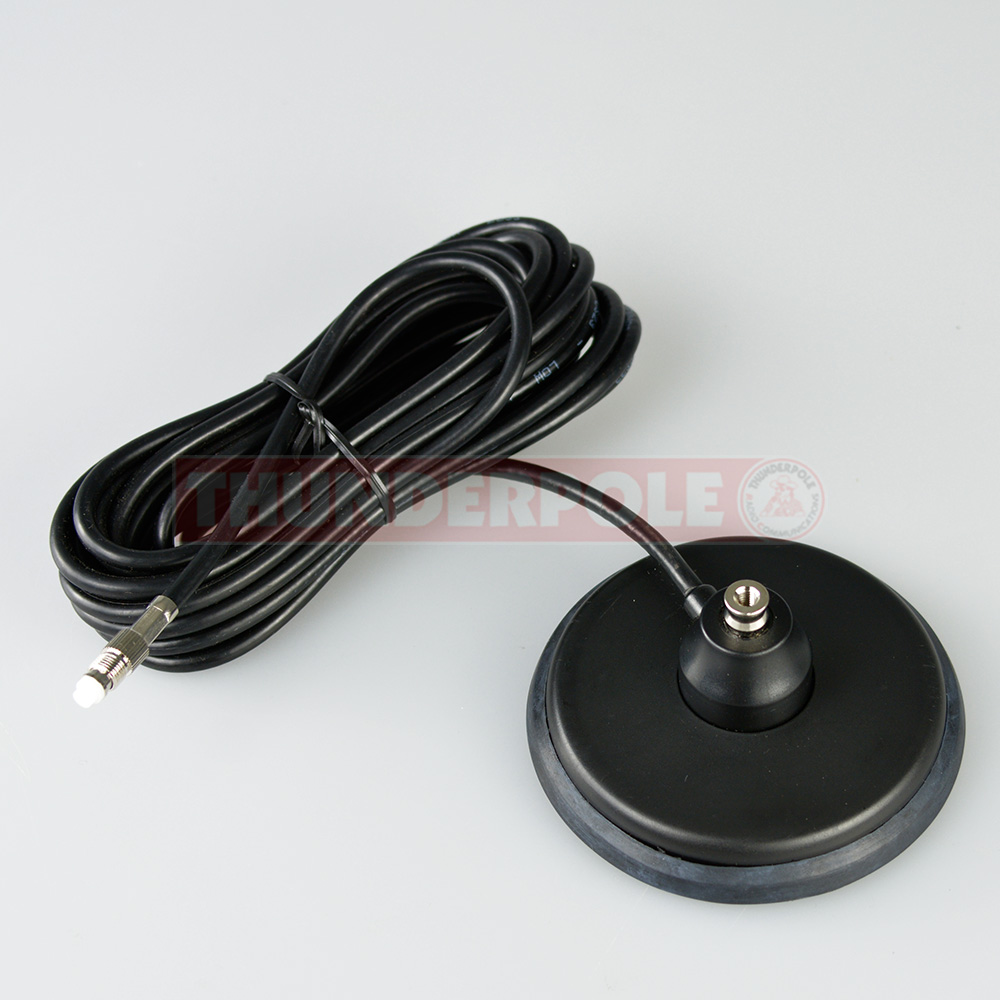

The MMR magnetic mount is a rugged, heavy duty base with an integrated 5m RG58 coaxial cable. It has a modular stud fitting and is suitable for use with many Panorama antennas VHF and UHF modular antennas.

The radiating element can be selected from a range of Panorama antennas products with a recommended max length of 1m (3'3") dependent on product type. The recommended frequency range for this base runs up to 960Mhz and the MMR range is especially suited for low frequency or high gain whips.

Specifications

  • 4" Magnetic Base
  • 5m of RG58 cable
  • Max Input Power: 150 Watts

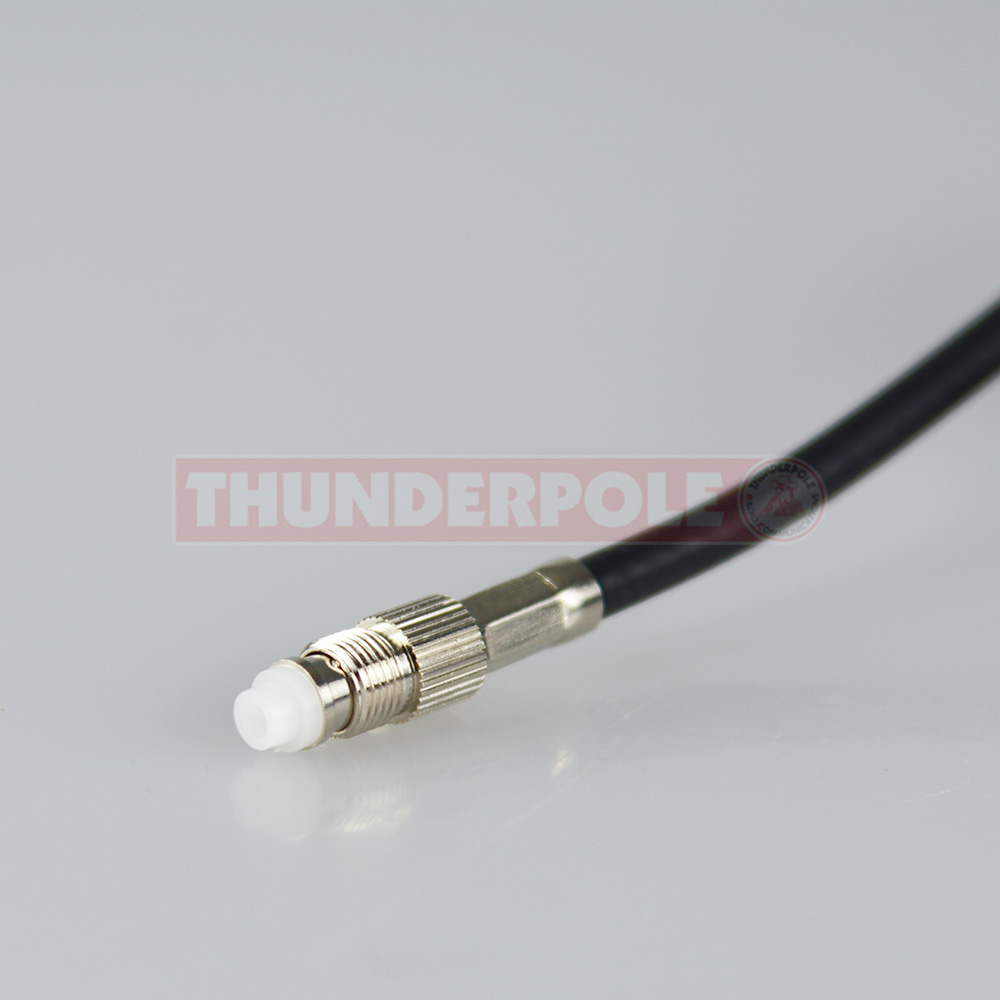

  • FME Socket Fitted
