Sigma Euro-Comm SE-X80 Vertical Antenna
 Sigma Euro-Comm SE-X80 Vertical AntennaSigma Euro-Comm SE-X80 Vertical Antenna


Sigma Euro-Comm SE-X80 Vertical Antenna


Ref:  32SE-HFX80
Bar Code:  5052009002771

Weight:  1.76 kg

Availability:



Product information

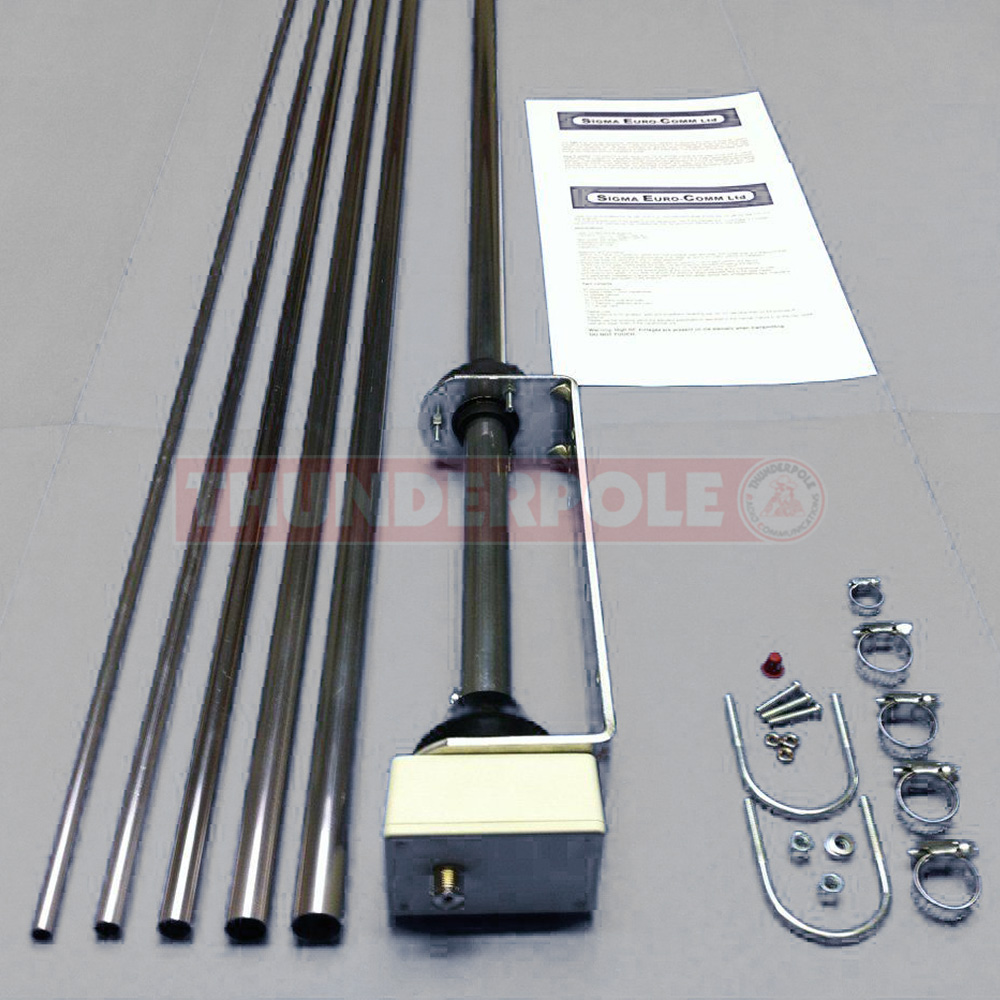

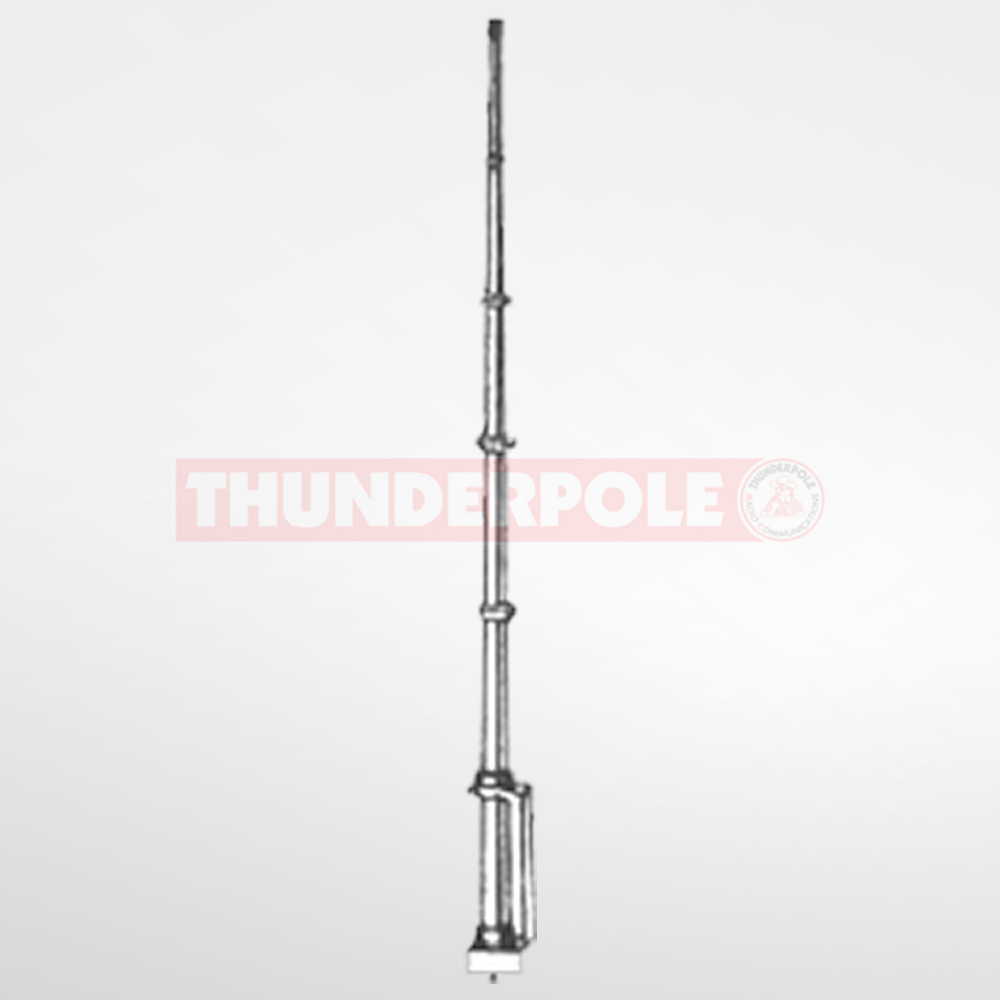

The X80 is an end fed aluminium vertical antenna, capable of allowing the user to work 80 meters through 6 meter bands using an ATU, also not requiring any counterpoise and can be fed using coax cable. The antenna can be pole mounted at ground level or elevated depending on the user personnel requirements. The antenna is rated at 300
watts pep. The antenna comes complete with all fixings and fixtures and full installation guide.

How it works: The antenna is fed using coax via an SO239 socket at the base of the unit a UNUN transformer is located in a weather sealed box at the bottom of the 6 meter telescoping aluminium element. The transformer reduces the high impedances generated to a more acceptable level making the antenna much more efficient and allowing
proper and easy tuning via a manual and most automatic ATU’s. The antenna can be grounded if the user experiences excessive local static noise, but as the UNUN is DC grounded, grounding will not effect the tuning ratio’s.

Frequency                                     VSWR
3.5 MHz 80 meters                      No tuner 1.1
7 MHz 40 meters                         2.1:1 No tuner, with atu1.1
10 MHz 30 meters                      No tuner 1.2:1, with atu 1.1
14 MHz 20 meters                      No tuner 2.4:1, with atu 1.1
18 MHz 17 meters                      No tuner 3.5:1, with atu 1.1
21 MHz 15 meters                      No tuner 1.5:1, with atu 1.1
24 MHz 12 meters                      No tuner 3.5:1, with atu 1.1
28 MHz 10 meters                      No tuner 1.1, with atu 1.1
50 MHz 6 meters                         No tuner 3.5:1 with ATU 1.1

Specifications

  • Type End fed vertical
  • Frequency TX / 3.5 - 29 MHz
  • RX / 1.8 - 55 MHz
  • Power handling 300 watts pep
  • Impedance 50 Ohms
  • Connector SO-239
  • Length 5.4 meters
