RG Mini 8 Super XX Coaxial Cable | Black | Per Metre
Thunderpole

RG Mini 8 Super XX Coaxial Cable | Black | Per Metre


Ref:  18007M
Brand:  Thunderpole

Weight:  54 g

Availability:



Product information

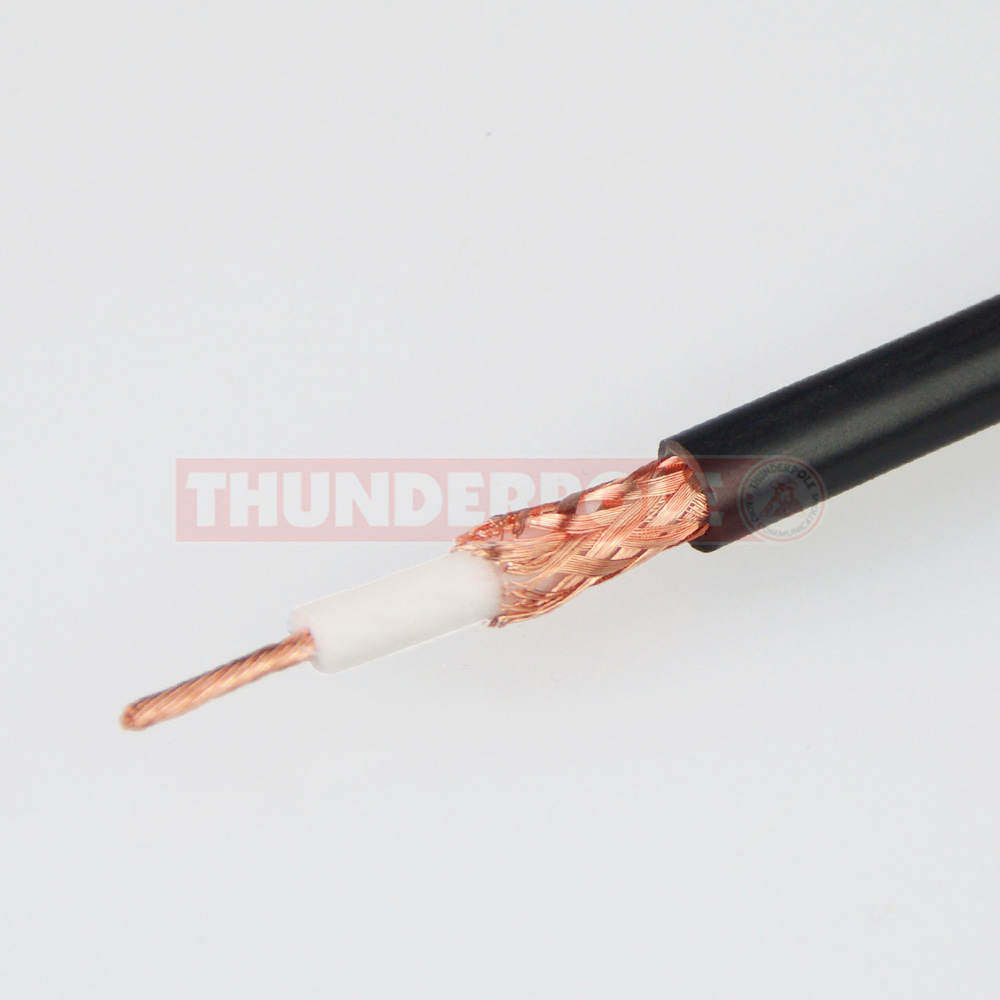

High quality, high performance low loss 50 Ohm coaxial cable suitable for most radio applications.

RG Mini 8 Super XX coax cable has the same spec as the larger RG213 cable, but has a smaller diameter to make it a lot easier to work with.

Note: Use 7mm PL259's when attaching to radios and mounts.

Specifications

  • High quality Low Loss co-axial cable
  • Plain copper inner conductor
  • Foam polyethylene dielectric
  • Plain copper outer conductor
  • Low smoke and fume polyvinyl-chloride sheath
  • Impedance 50 ohms
  • Sheath diameter 6.1mm
  • Capacitance 80pF/m
  • Velocity ratio 80%
  • Screening effectiveness 100-900 Mhz >55
  • Attenuation  :- dB/100m
  • 50Mhz - 7.2
  • 100Mhz - 10.5
  • 400Mhz - 22.2
  • 600Mhz - 27.6
  • 860Mhz - 33.9
  • 1000Mhz - 37.0
  • 2400Mhz - 64.5
