Sirio 827
 Sirio 827Sirio 827
Sirio

Sirio 827


Ref:  09000
Brand:  Sirio

Weight:  5.78kg

Availability:



Product information

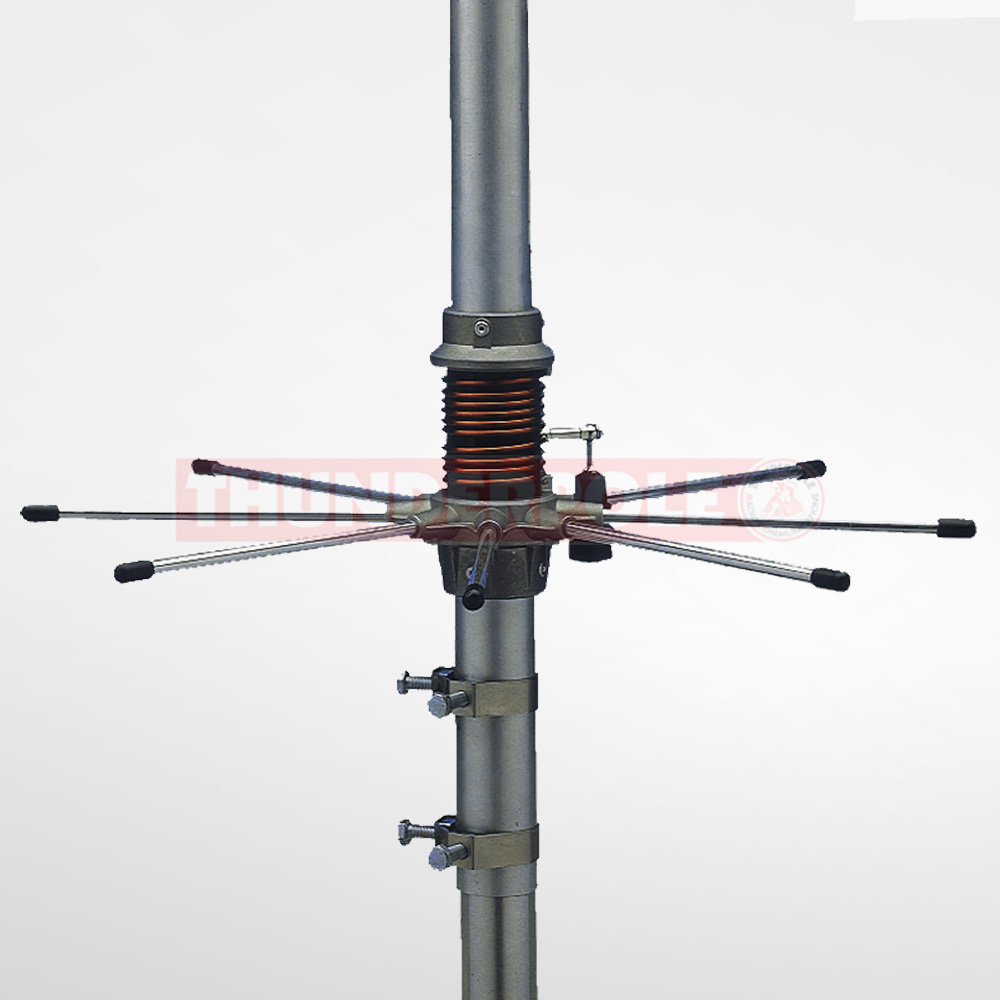

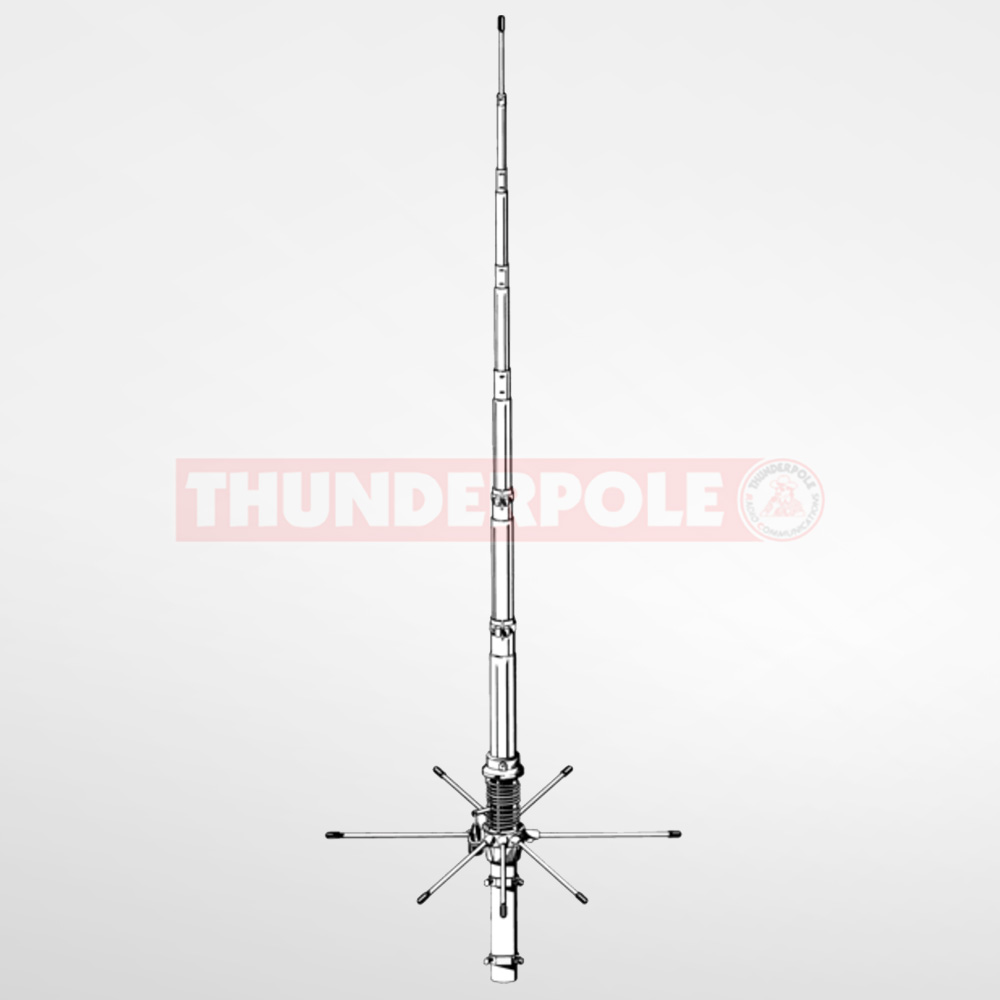

The Sirio 827 base station antenna for the CB radio band.

Specifications

  • Type: 5/8 λ ground plane
  • Radiation: Omnidirectional
  • Polarization: Linear vertical
  • Frequency range: 26.4 - 28.4 MHz Tunable
  • Systems: 10m-HAM
  • Gain: 1.5 dBd, 3.65 dBi
  • Bandwidth: ≥ 2MHz @ SWR ≤ 2
  • Max Power: 1000 Watts (CW) continuous
  • 3000 Watts (CW) short time
  • Grounding protection: DC-Ground
  • Connector: UHF-female (SO-239)

Mechanical Data:

  • Materials: Aluminium, Copper, Galvanized steel, Nylon
  • Height (approx): 6700 mm / 21.98 ft
  • Weight (approx): 6000 gr / 13.23 lb
  • Mounting type: On-Mast
