Solarcon IMAX-2000
Solarcon

Solarcon IMAX-2000


Ref:  09018
Bar Code:  792161003265
Brand:  Solarcon

Weight:  5.50kg

Availability:



Product information

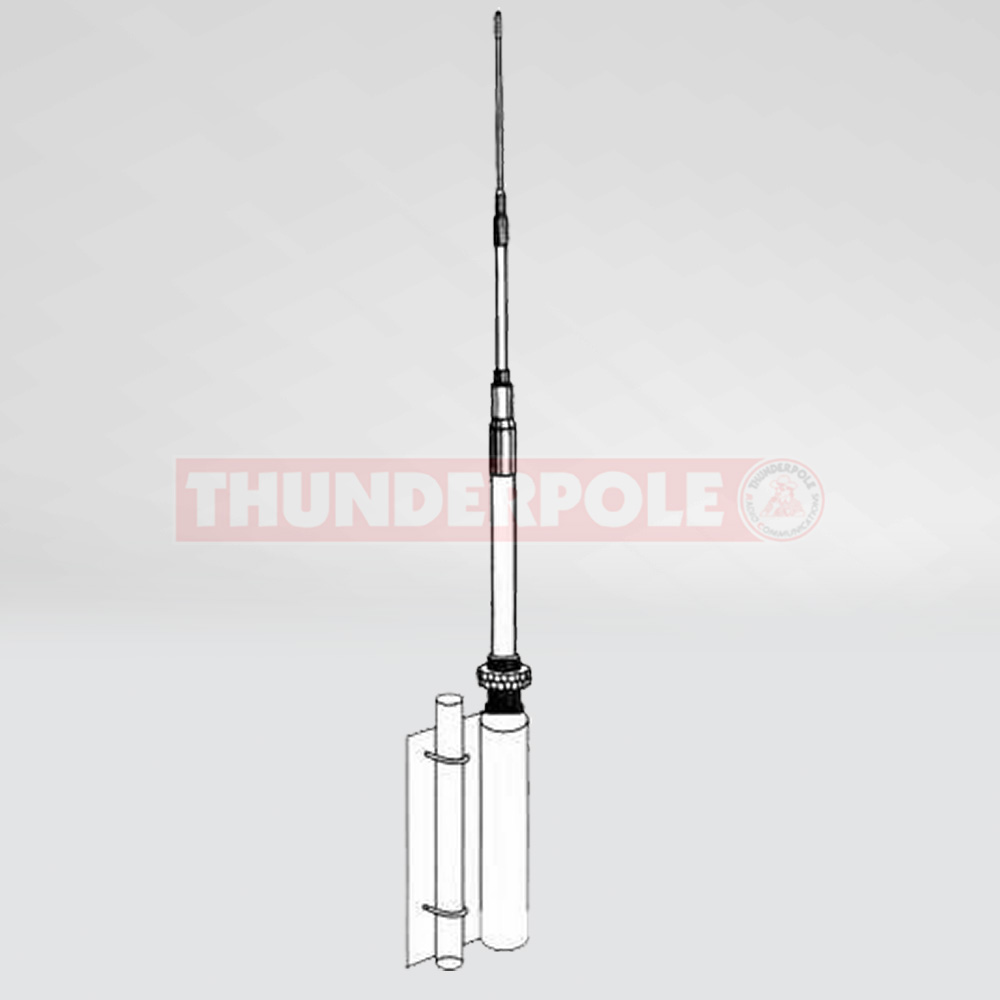

Solarcon Imax-2000 5/8 Wave base station CB Radio antenna is useable from 25.500 MHz to 28.700 MHz without tuner. It is 24' tall (Three 8' Sections) and covers above and below the traditional CB channels.

Note: Connector at bottom section: When measuring with a multi-meter on the UHF-Female (PL-259) between conductor and ground a short cut will be measured. The reason for this is the special design of the MAX2000 and is total different from most 'regular' antennas. The same measuring result when checking only the bottom section or all sections installed. Mid section: When measuring with a mult-meter between the top and the bottom of the mid section there will be NO continuity shown. The reason for this is the capacitor in the mid section, that is required to create a 5/8 wave antenna. Remark: In Max 2000 there is a capacitor in the mid section because it is a 5/8 wave antenna, but there is No capacitor in the mid section of the A99 as this is a 1/2 wave antenna.

Pack Includes:

1x IMAX-2000 Antenna
1x Set of Mounting Materials
1x User Manual in English

Specifications

  • Antenna CB Base
  • Whip Fiberglass
  • Total Length 550 cm
  • Max Power 2000W
  • Connector: UHF-Female

Features:

  • Handles 5000 Watts
  • SWR Tuneable
  • 3mHz Bandwidth (under 2:1 swr)
  • Covers far above and below the traditional CB channels
  • 1-2dB gain over best competitor
  • Optimum SWR 1.5 - 1
  • DC Grounded
  • 24 feet Tall ( Three 8 feet Sections )
  • Insulated up to 14,500 Volts
  • Can be Used for Export, Commercial, and 10 Metre.
  • New easier stronger mounting system
