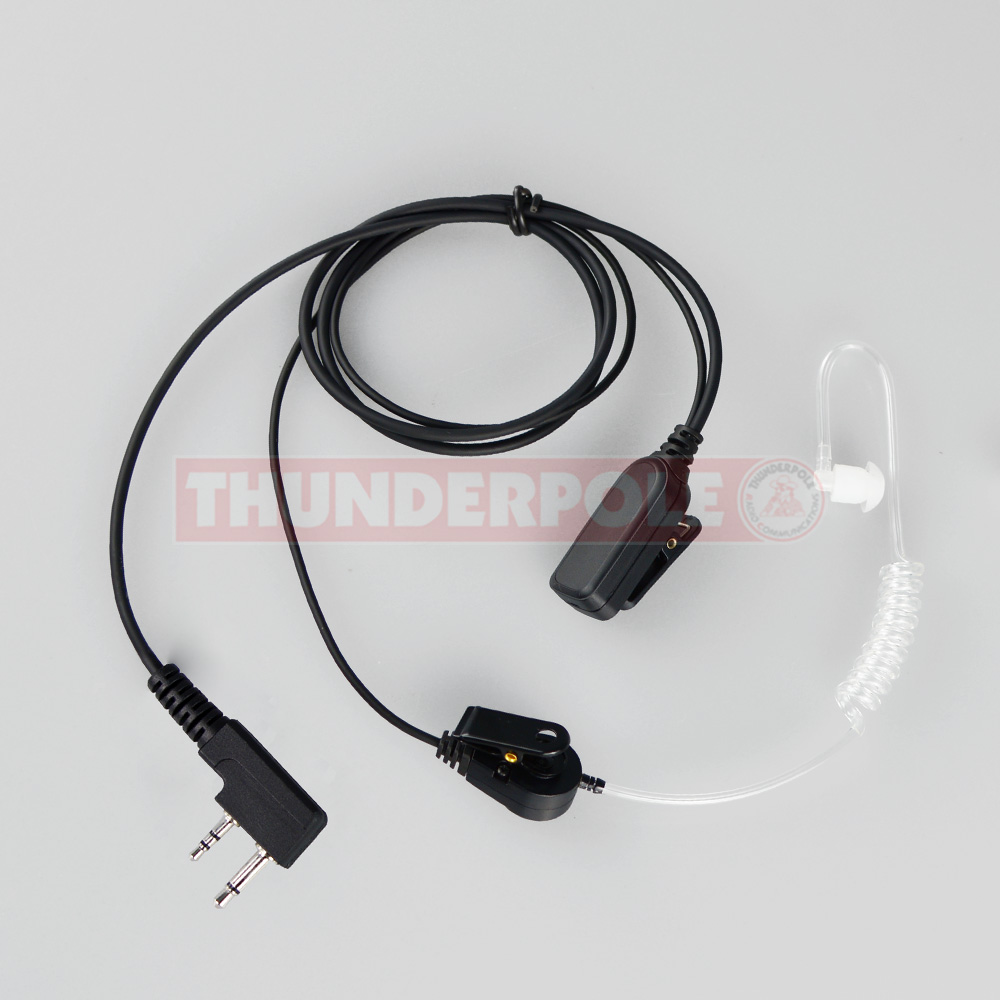

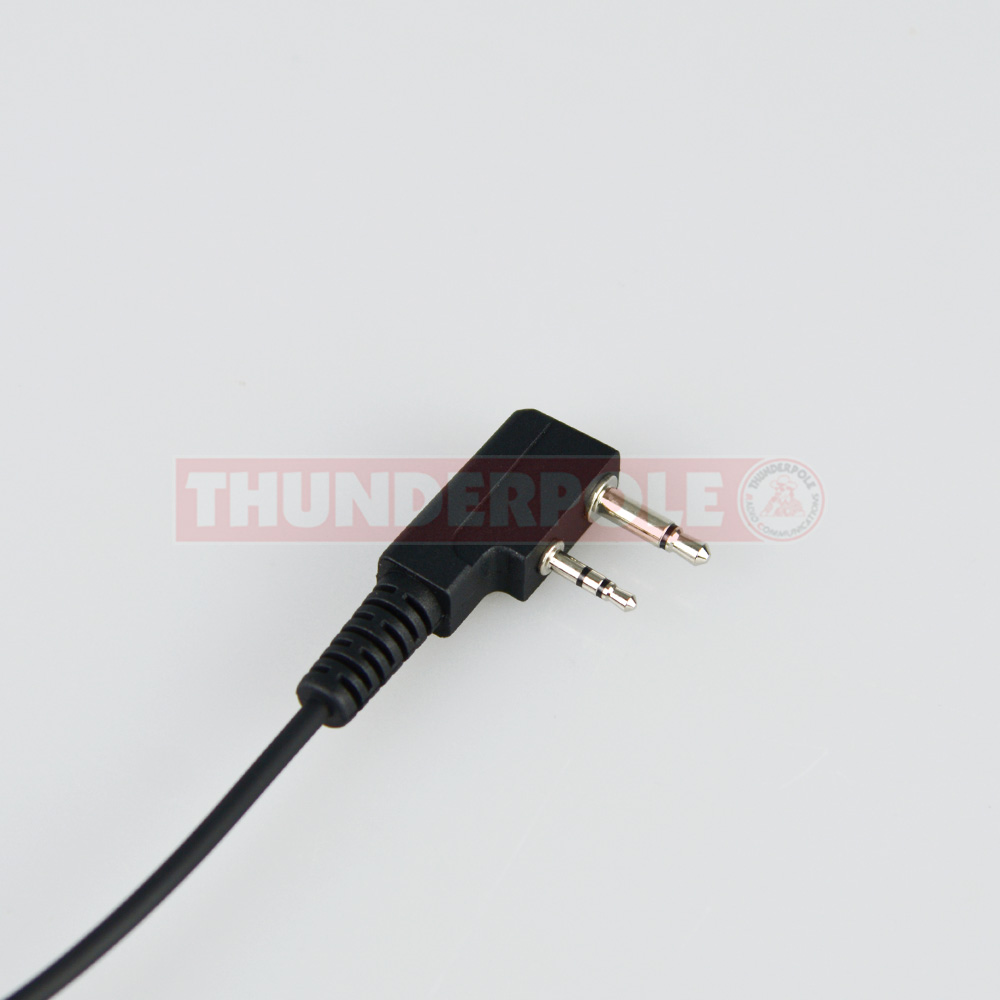

Acoustic Earpiece / Microphone for 2 Pin Icom Radios
Acoustic Earpiece / Microphone for 2 Pin Icom RadiosAcoustic Earpiece / Microphone for 2 Pin Icom RadiosAcoustic Earpiece / Microphone for 2 Pin Icom RadiosAcoustic Earpiece / Microphone for 2 Pin Icom RadiosAcoustic Earpiece / Microphone for 2 Pin Icom Radios


Acoustic Earpiece / Microphone for 2 Pin Icom Radios


Ref:  46-SYS-4040S2

Weight:  350 g

Availability:



Product information

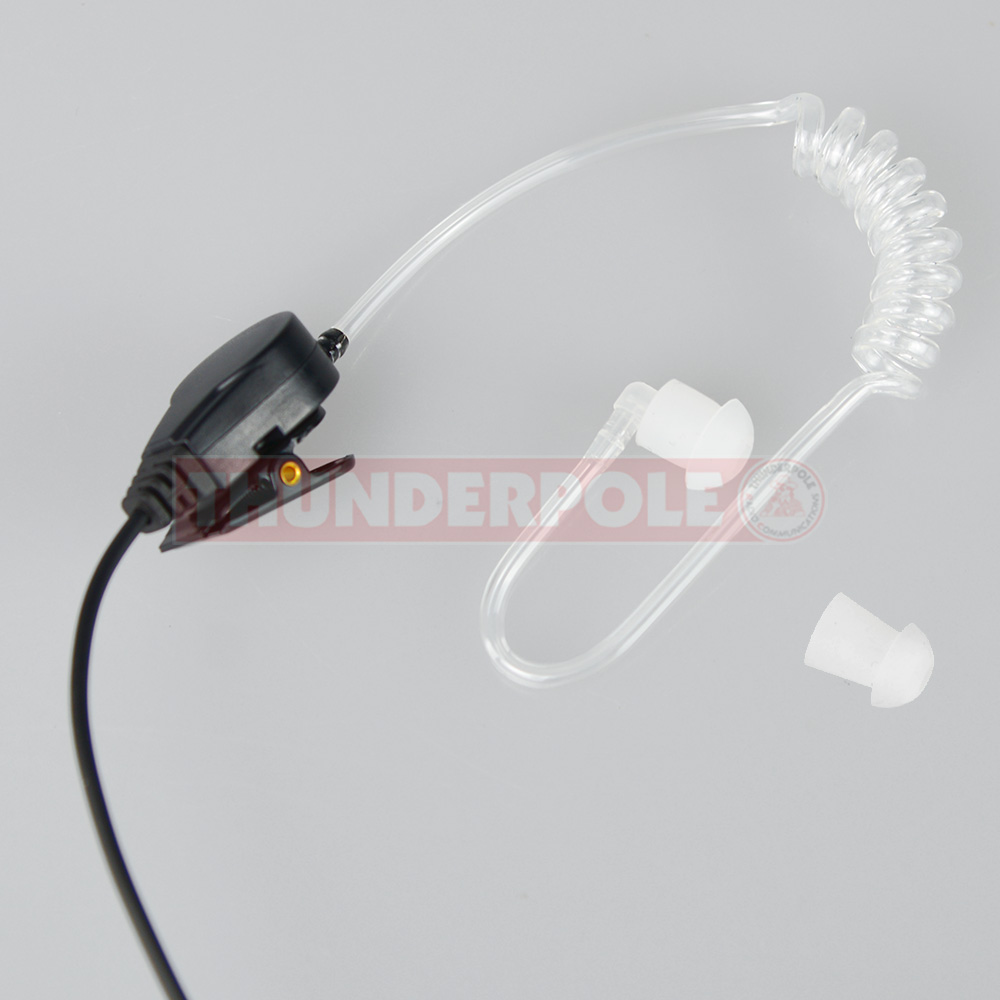

A Single Wire Earpiece with Acoustic Tube.

Features a surgical grade acoustic tube that is discreet and comfortable. Quick-fasten secure structure and environmental PU cable reinforced with Kevlar.

Ideal for discreet communication in sensitive environments. Suitable for many applications including; security personnel, hotel and catering staff, etc.

Specifications

  • Speaker
    Dimensions: 19.0mm x 10.6mm
    Impedance: 73 ± 200hm @ 1000hm
    Rated Input Power: 1mW
    Maximum Power: 300mW
    Sound Pressure Level: 117 ± 3db @1000Hz

  • Microphone
    Type: Electric Condenser Mic
    Impedance: 2.2 kOhm
    Sensitivity: -40 ± 3db @1000Hz (0db = 1V/PA)
    Operating Voltage: 1.0-10VDC

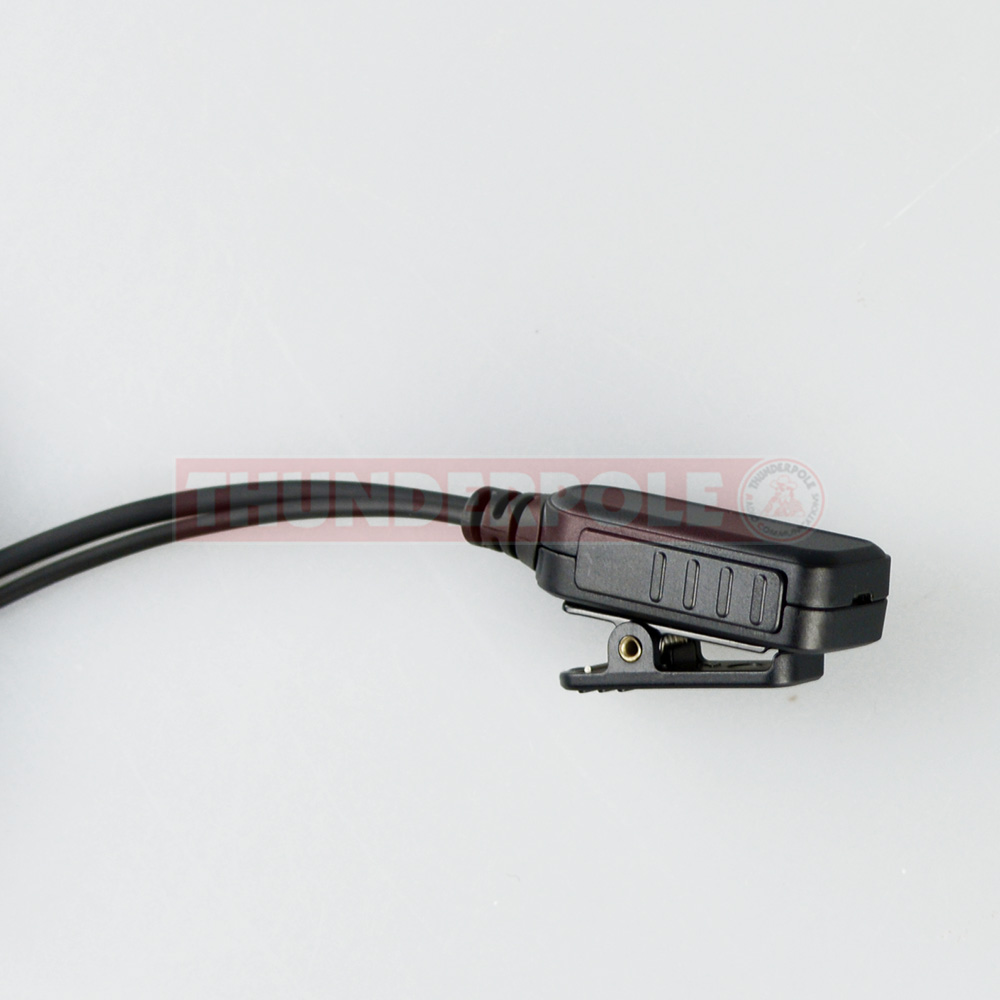

  • PTT
    Dimensions:
    34.9 x 14.2 x 11.8mm

  • Includes
    2x Ear Bud
    Acoustic Tube

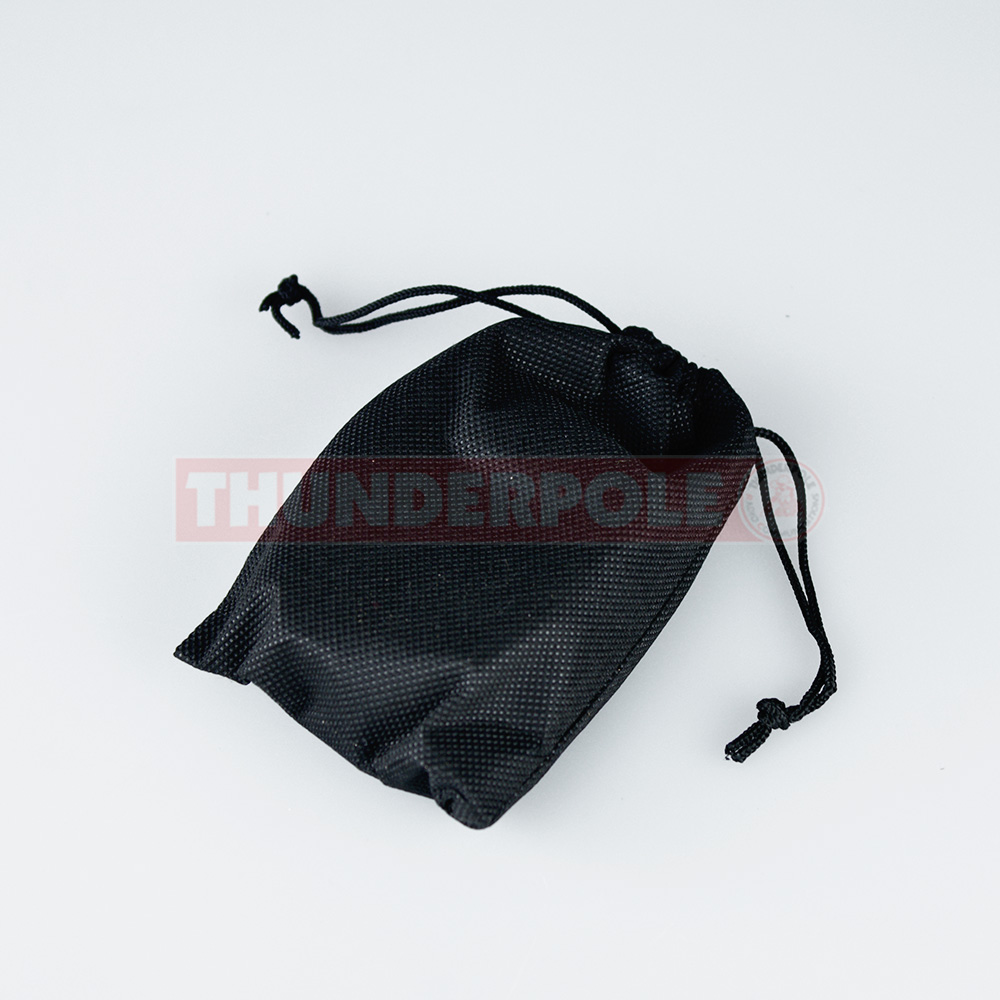

    Pouch
