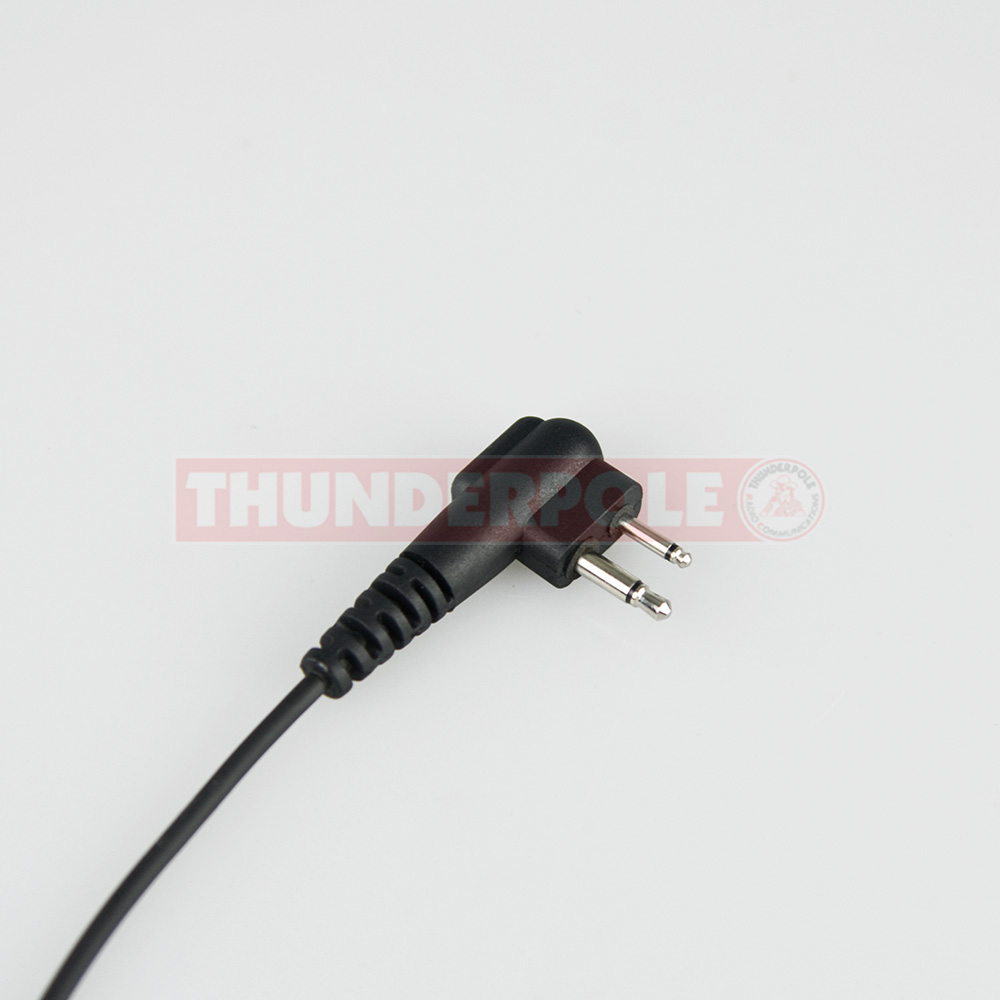

D-Shape Earpiece / Microphone for 2 Pin Motorola Radios
D-Shape Earpiece / Microphone for 2 Pin Motorola RadiosD-Shape Earpiece / Microphone for 2 Pin Motorola RadiosD-Shape Earpiece / Microphone for 2 Pin Motorola RadiosD-Shape Earpiece / Microphone for 2 Pin Motorola RadiosD-Shape Earpiece / Microphone for 2 Pin Motorola Radios


D-Shape Earpiece / Microphone for 2 Pin Motorola Radios


Ref:  46-SYS-1040M1

Weight:  28g

Availability:



Product information

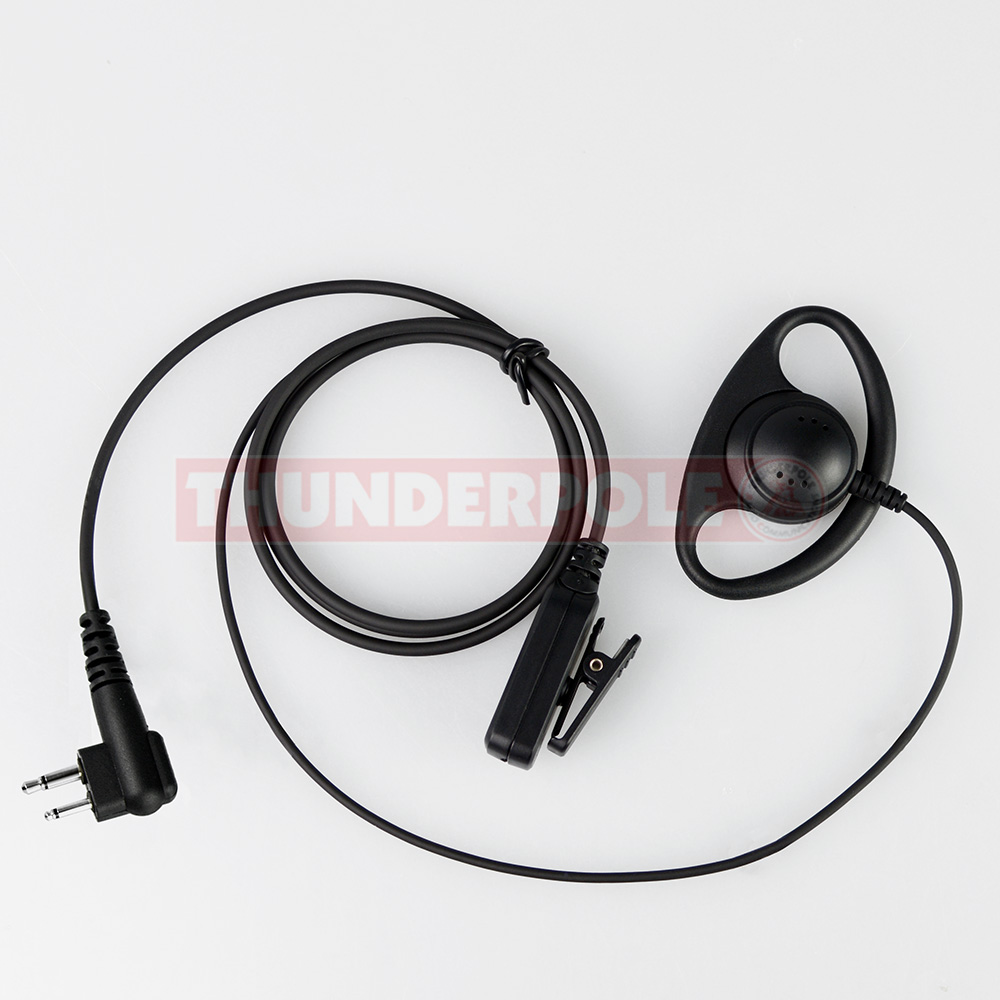

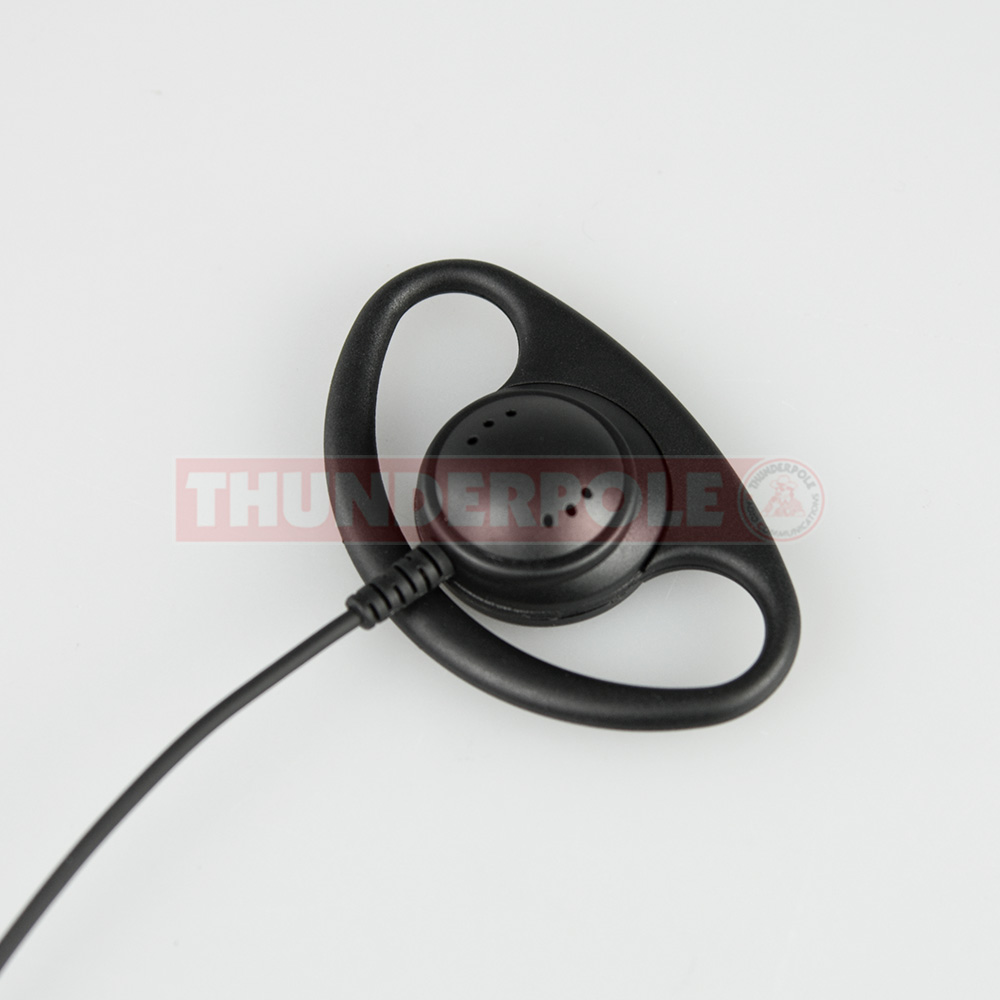

A rubber D Shaped Earpiece with Lapel Mic and Inline PTT.

Features a soft, skin-friendly ear hook material and environmental PU cable reinforced with Kevlar.

Suitable for many applications including; patrolling security personnel, hotel and catering staff, conference halls, restaurants and casinos etc.



Specifications

  • Speaker
    Dimensions: 15.0mm x 6.0mm
    Impedance: 320hm ± 15% @ 1000Hz
    Rated Input Power: 100mW
    Maximum Power: 200mW
    Sound Pressure Level: 105 ± 3db @1000Hz

  • Microphone
    Type: Electric Condenser Mic
    Impedance: 2.2 kOhm
    Sensitivity: -40 ± 3db @1000Hz (0db = 1V/PA)
    Operating Voltage: 11.1-10VDC

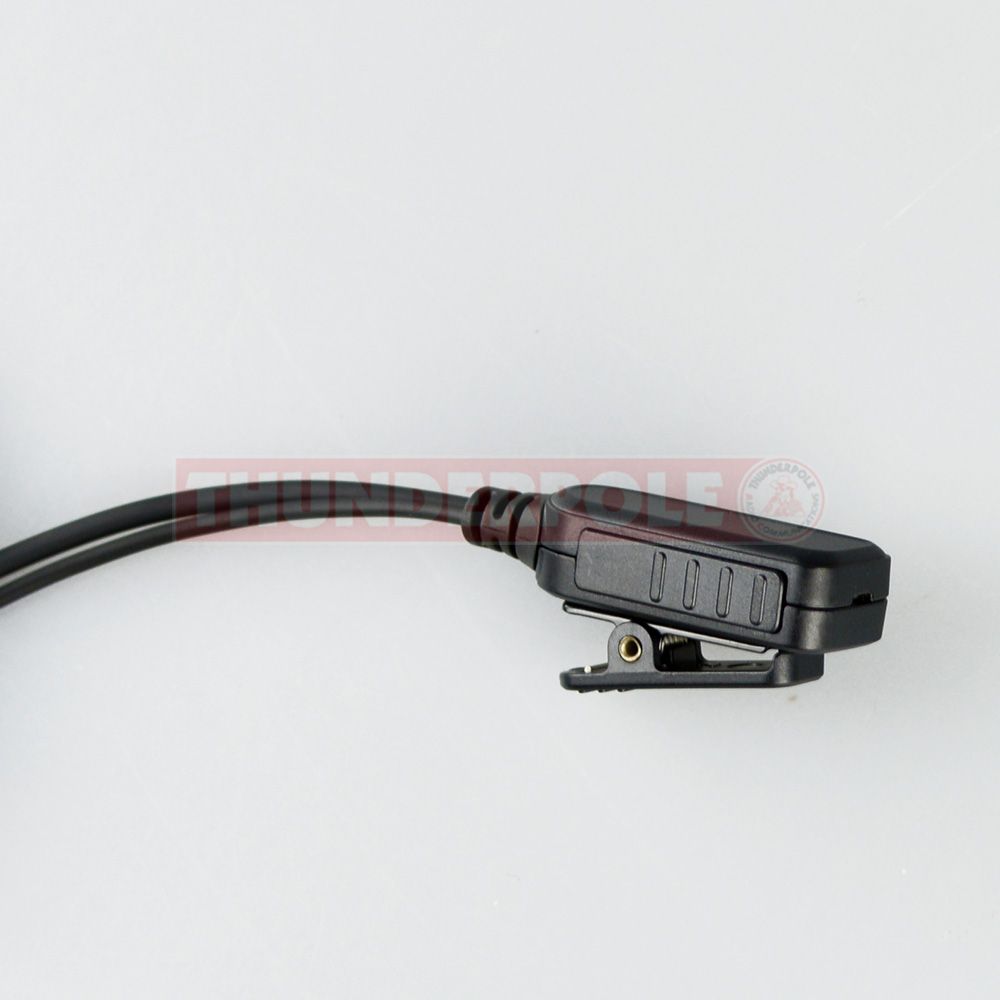

  • PTT
    Dimensions:
    34.9 x 14.2 x 11.8mm
