TTI-TCB-H100
TTI-TCB-H100TTI-TCB-H100TTI-TCB-H100TTI-TCB-H100


TTI-TCB-H100


Ref:  01TTI-H100
Bar Code:  8809075192311
Brand:  TTI

Weight:  350g

Availability:



Product information

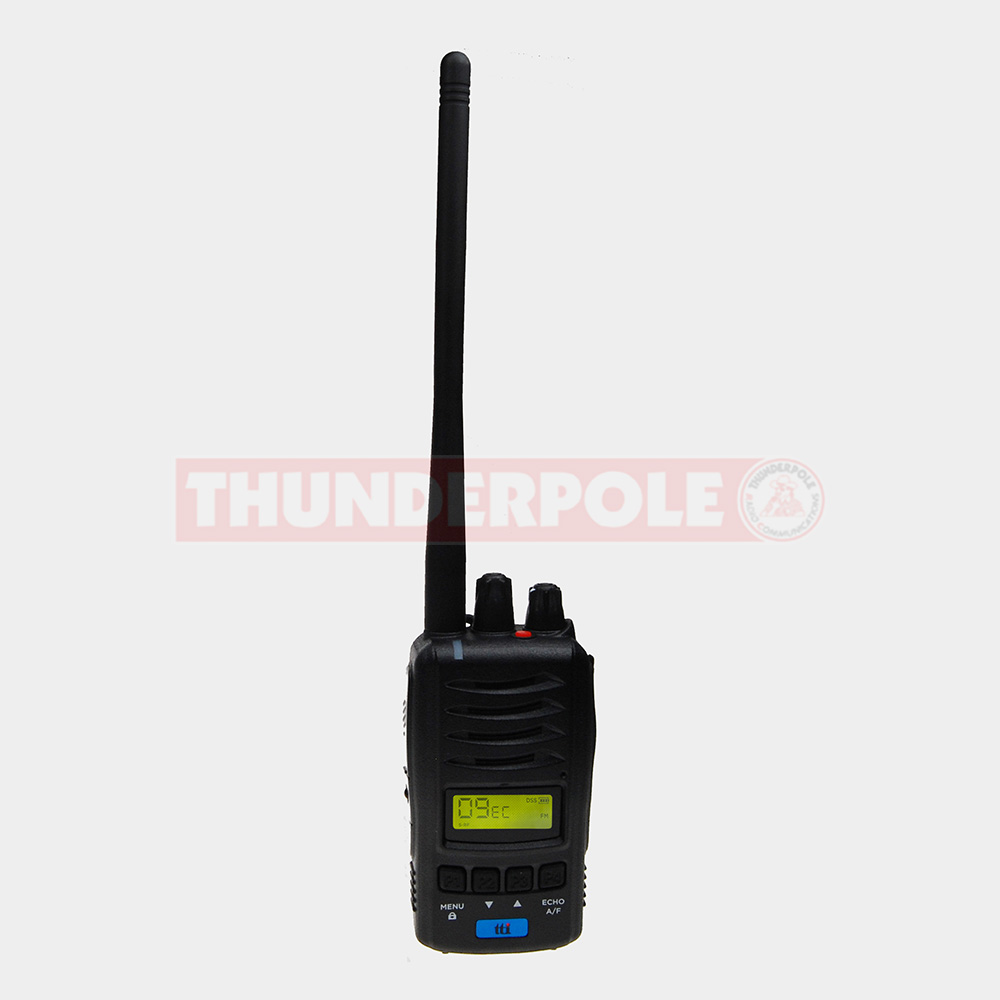

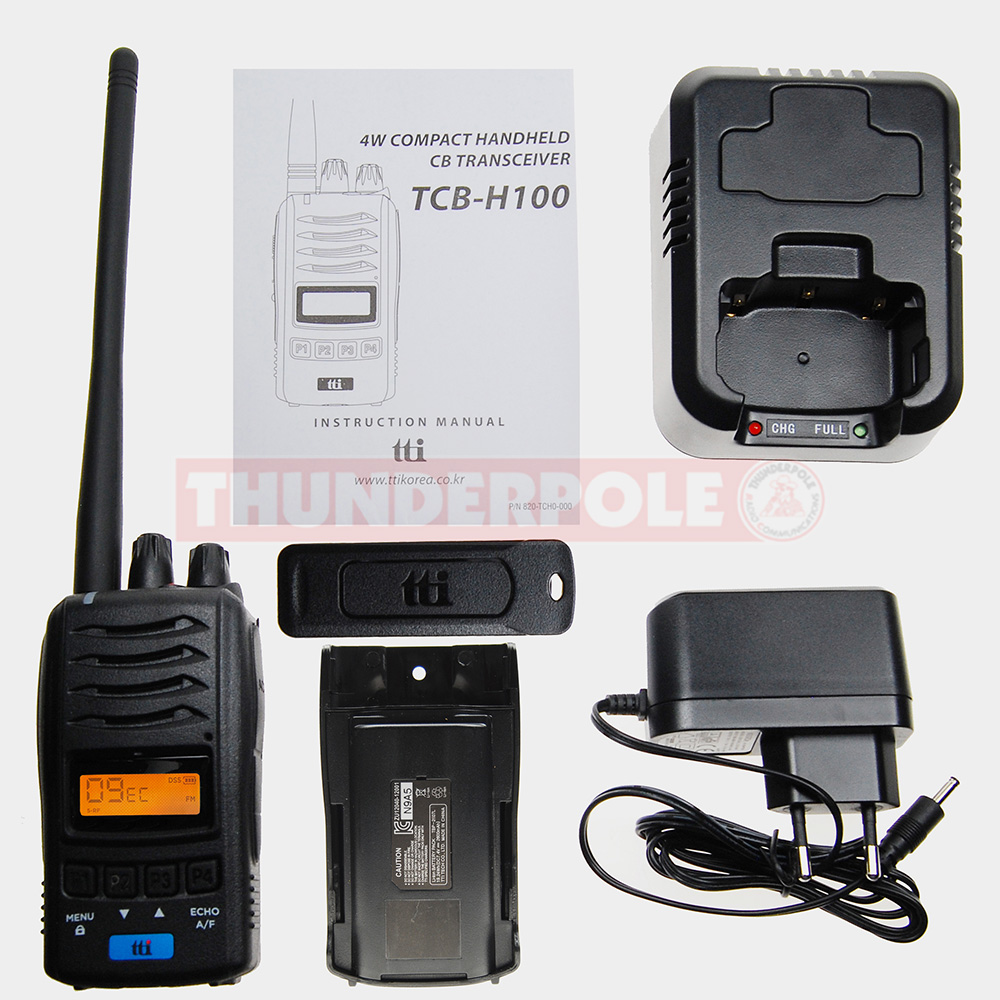

The TTI TCB-H100 is the new compact handheld CB radio from TTI with ECHO function, VOX function, 3 display colours and many more functions. Optional extras include a 12/24 volt car charger and D-Shape Earpiece.

Specifications

  • Frequency range: 26.56-28 MHz
  • Operating mode: F3E (FM), A3E (AM)
  • Frequency control: PLL synthesizer
  • Frequency tolerance: 0.002%
  • Operating temperature range: -10 to +55 Celsius
  • Power supply: 7.4V (Li-ion battery)
  • Size: 57 (W) x 116 (H) x 39 (D)
  • Weight: 224 gram

Features

  • 4 Watt AM/FM
  • Multinorm: EC, EU, d, I2, I, UE, UK, PL, F, E
  • Power on/off and volume control knob
  • Squelch adjuster and DDS (Dynamic Squelch Tuning System)
  • Emergency button, channel 9/19
  • PTT button, red LED lights during TX

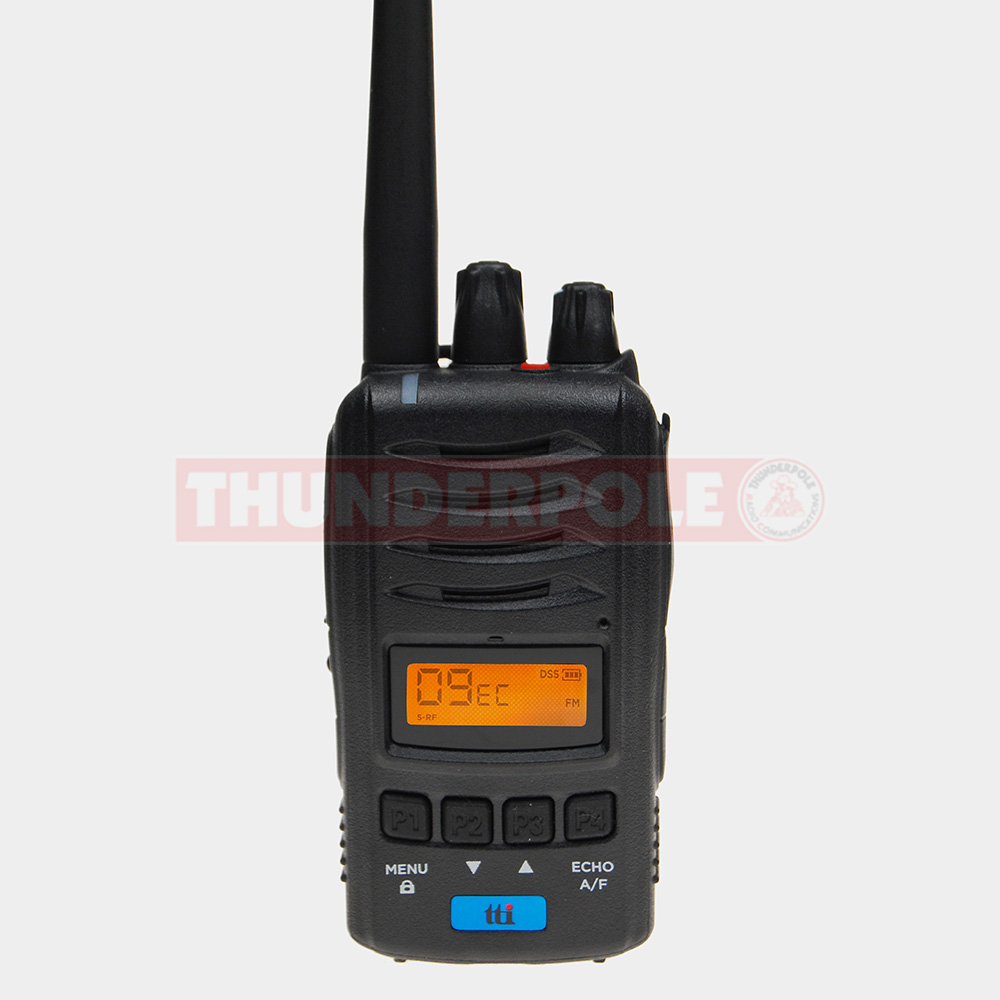

  • 3 colour backlighting: red, amber, green or no colour
  • Scan function
  • Menu function
  • Lock function
  • VOX function, 3 levels
  • Beep tone
  • Roger beep
  • Channel up/down buttons
  • AM/FM button
  • Echo function
  • Signal strength meter
  • Low battery indicator

Transmitter

  • Power output: Duty cycle 10% 4 Watts @ 13.2V DC
  • Modulation: AM: from 85% to 95%, FM: 1.8 kHz +/- 0.2 kHz
  • Frequency response: 300 Hz to 3000 Hz
  • Output impedance: 50 Ohms, unbalanced
  • Harmonic suppression: less than -54 dBm
  • Current drain: AM full Mod. 1.6A Max.

Receiver

  • Receiving system: dual conversion superheterodyne
  • IF frequencies: double conversion 1st 10.695 MHz / 2nd 455 kHz
  • Sensitivity: 1.4 uV for 10 dB (S + N) / N in AM mode, 0.8 uV for 20 dB SINAD in FM mode
  • Audio output power: 1W @ 16 Ohm
  • Audio distortion: less than 8% @ 1 kHz
  • Image rejection: more than 60 dB
  • Adjacent channel rejection: more than 60 dB
  • Conducted spurious: less than -57 dBm
  • Frequency response: 300 Hz to 2500 Hz
  • Built-in speaker: 16 Ohms, round
  • Squelch: adjustable, threshold less than 1 uV, DSS less than 2 uV
