K-PO SX-1000 | N Type
K-PO SX-1000 | N TypeK-PO SX-1000 | N TypeK-PO SX-1000 | N TypeK-PO SX-1000 | N Type
K-PO

K-PO SX-1000 | N Type


Ref:  08SWR1000
Brand:  K-PO

Weight:  890 g

Availability:



Product information

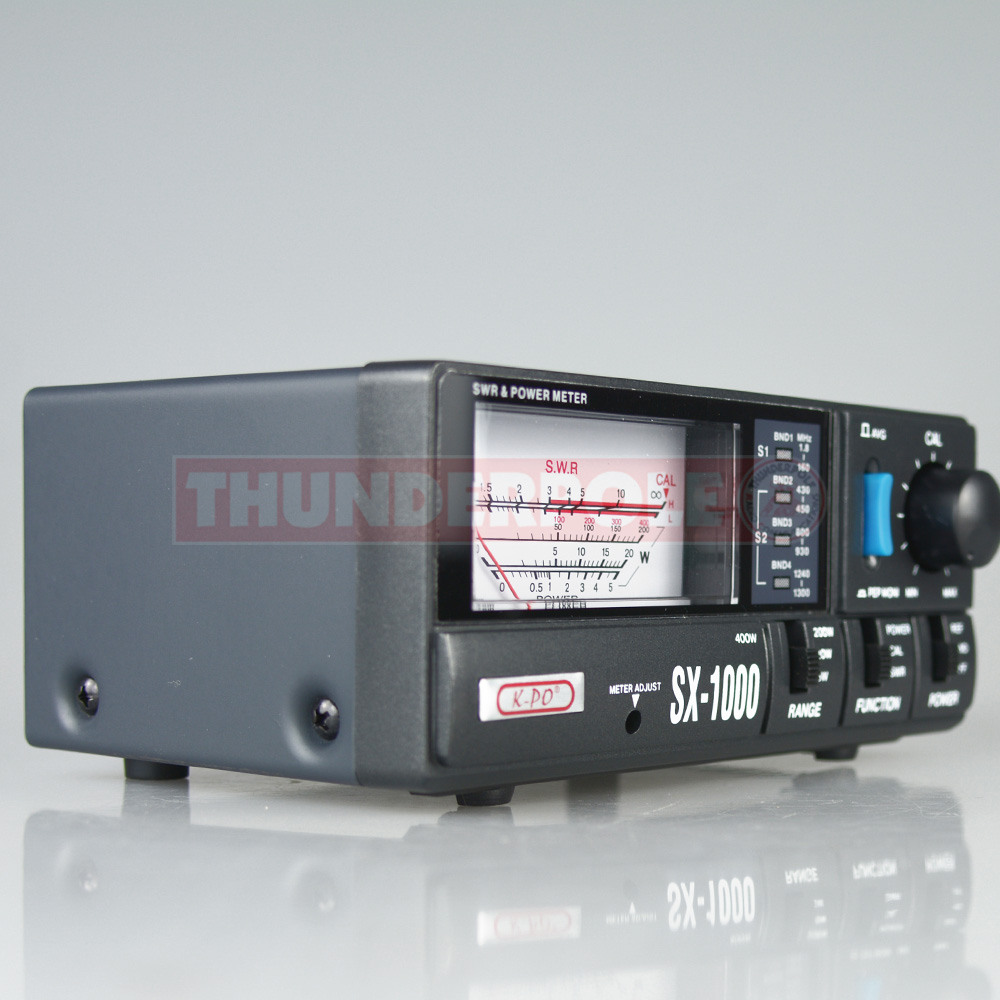

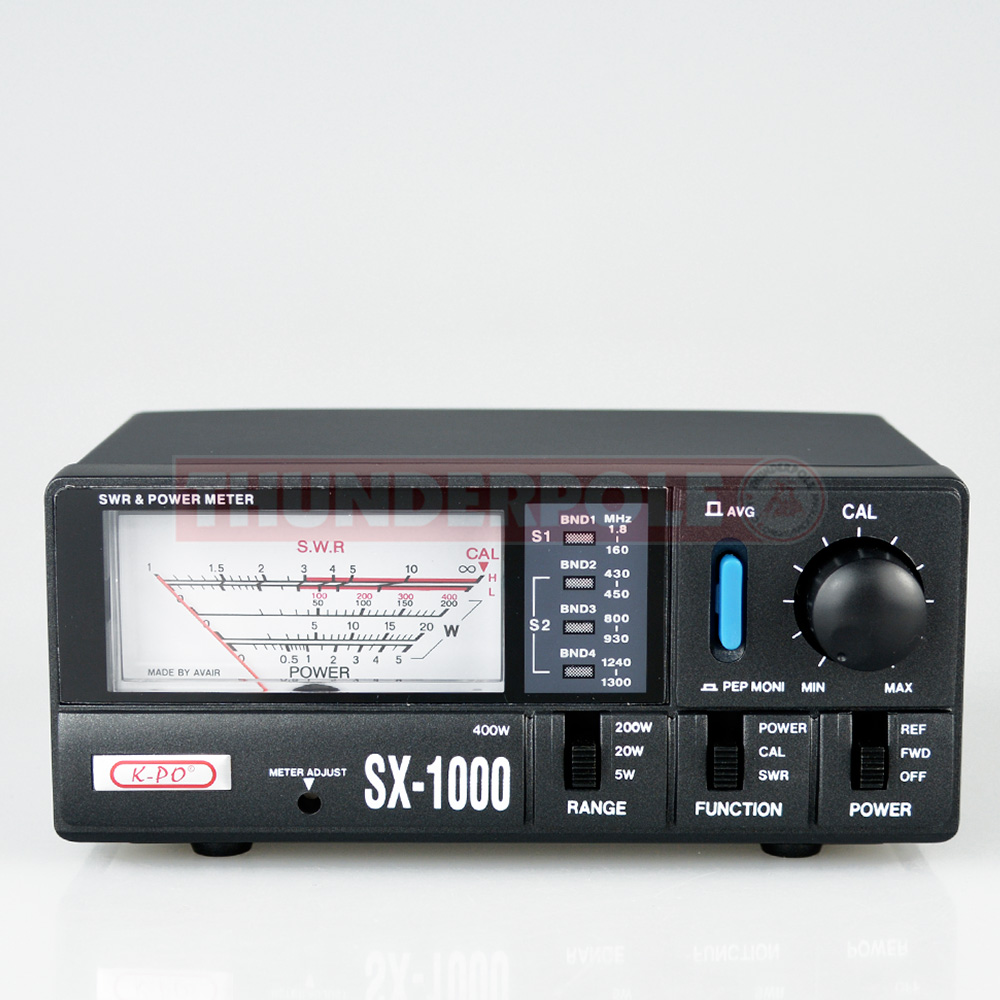

The K-PO SX-1000 is a compact VSWR and power meter that covers HF, VHF and UHF which measures forward and reflected power and VSWR. It has switchable RMS or Peak power measurement and an illuminated meter.

It also has two directional couplers with switch and LED indicators for in-line connection of two transceivers.

Includes a FREE guide on how to tune your aerial.

Specifications

  • Frequency range: S1 (1.8-160MHz.) / S2 (430-450MHz./800-930MHz.1240-1300MHz.)
  • Power range: 5/20/200 W.
  • Sensor: 2 sensors (S1/S2)
  • Minimum Power for SWR reading: 1 W. (S1) / 2 W. (S2)
  • Impedance: 50 Ohms
  • Panel light Power: 12 VDC
  • Insertion loss: less than 0.2 dB. (S1) / less than 0.15 dB (S2)
  • Measuring functions: output power, reflected power, SWR.

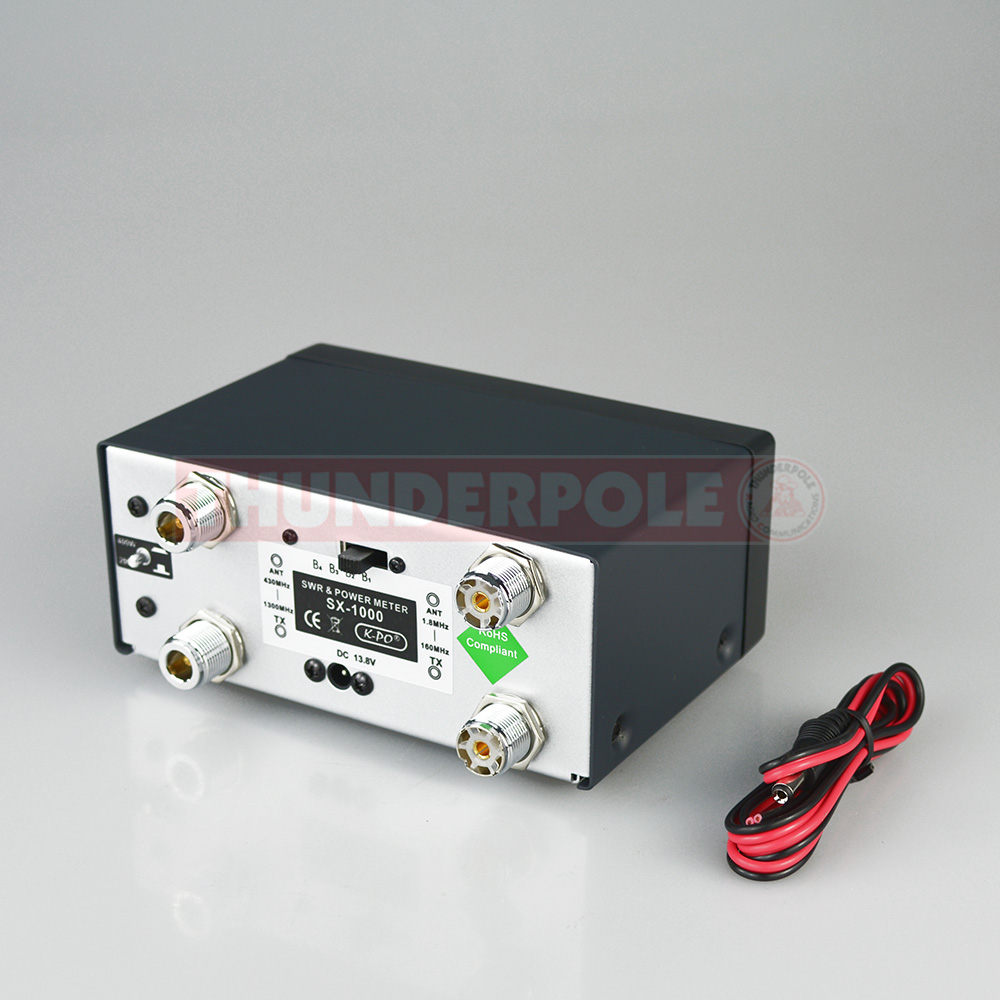

  • Connectors: PL (S1) / N (S2)
  • Dimensions: 155 x 63 x 103.
  • Weight: 890 gr.
