HamKing X-50N Dual Band Antenna
HamKing X-50N Dual Band AntennaHamKing X-50N Dual Band AntennaHamKing X-50N Dual Band Antenna
HamKing X-50N Dual Band AntennaHamKing X-50N Dual Band AntennaHamKing X-50N Dual Band Antenna


HamKing X-50N Dual Band Antenna


Ref:  32HK-X-50N
Bar Code:  8718375101216
Brand:  HamKing

Weight:  1 kg

Availability:



Product information

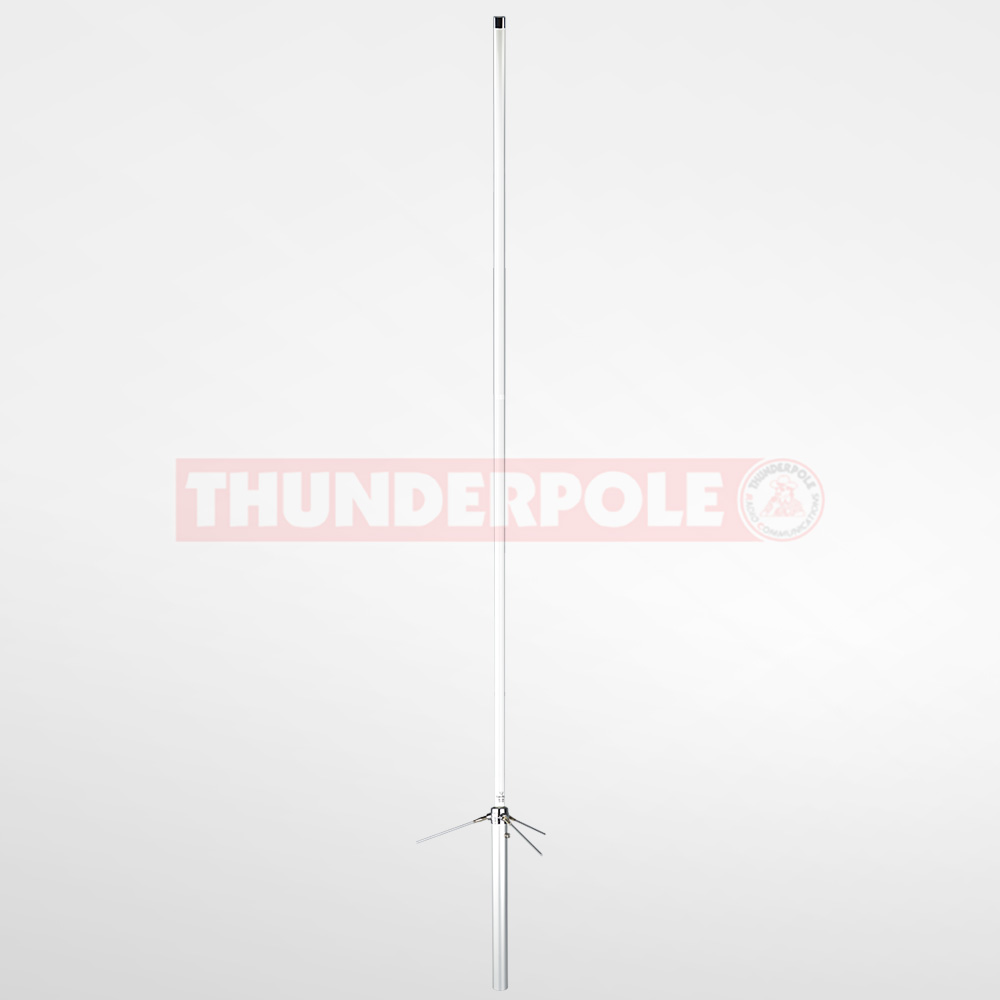

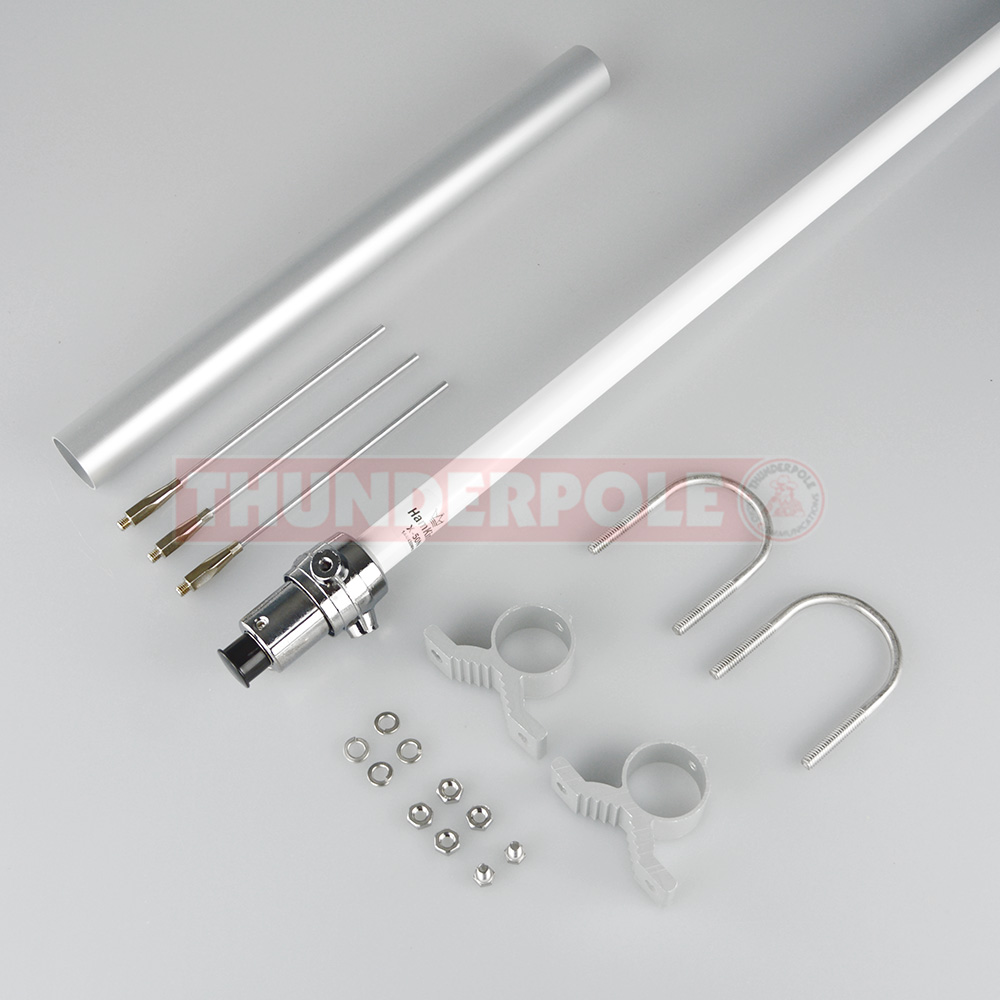

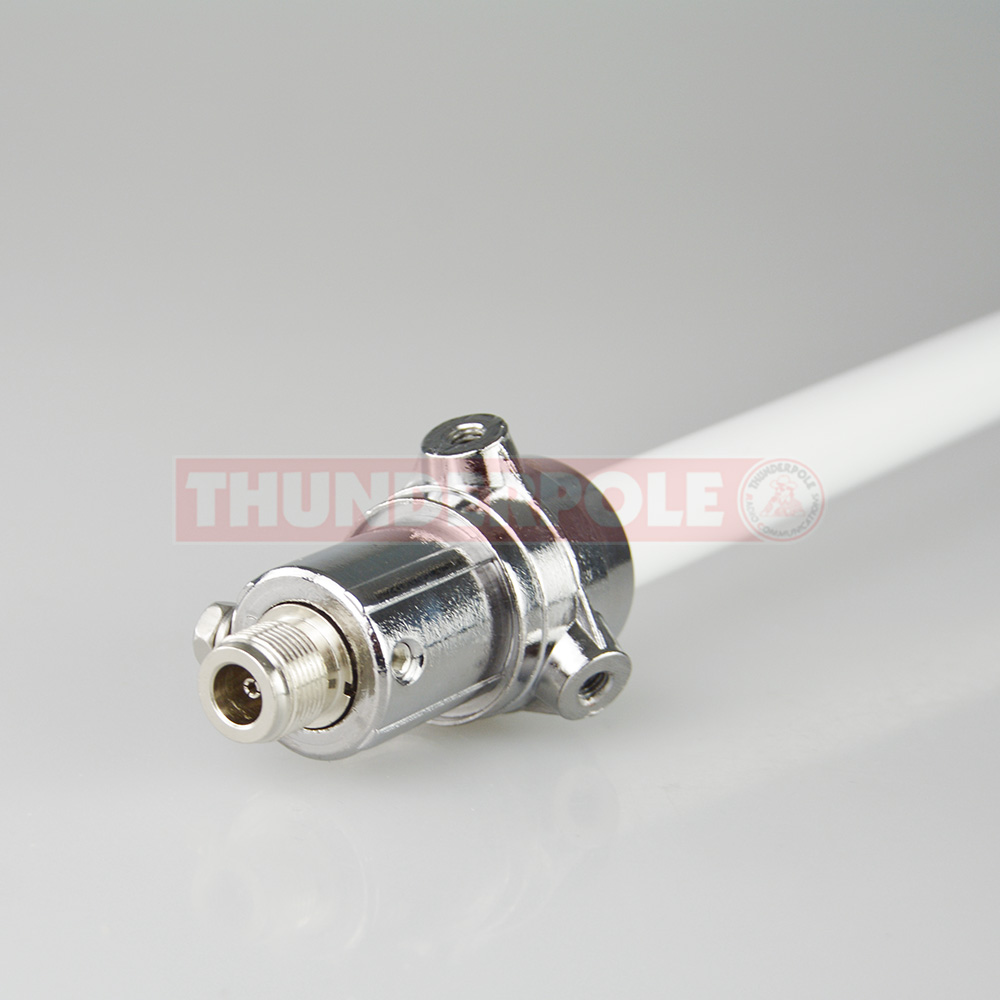

The HamKing X-50N vertical antenna for 144 MHz (4.5 dBi gain) and 430 MHz (7.2 dBi gain) consists of a fibre glass rod construction, which will be delivered pre-tuned and fully weatherproofed. Mast mounting brackets are included. Fitted with a low loss N-connector for best performance. Maximum power: 200 watts.

Specifications

Electrical Data:

  • Frequency band: VHF/UHF/
  • Frequency: 144/430 Mhz
  • Gain: 4.5 dBi (144 MHz) / 7.2dBi (430 MHz)
  • VSWR:<1.5 Power: 200 watts
  • Impedance: 50 Ohms
  • Type: 6/8 wave C-Load (144 MHz), 3x5/8 wave C-Load (430 MHz)
  • Radiation:Omnidirectional

Mechanical Data:

  • Weight: 900 gram
  • Lenght: 170 cm
  • Connector:N male
  • Mast Ø:30 - 48 mm
  • Max wind resistance:60 m/sec (216 km/h)
