HamKing SG-7900 Dual Band  Antenna
HamKing SG-7900 Dual Band  AntennaHamKing SG-7900 Dual Band  AntennaHamKing SG-7900 Dual Band  AntennaHamKing SG-7900 Dual Band  AntennaHamKing SG-7900 Dual Band  Antenna


HamKing SG-7900 Dual Band Antenna


Ref:  32SG7900
Bar Code:  8032182180883
Brand:  HamKing

Weight:  590g

Availability:



Product information

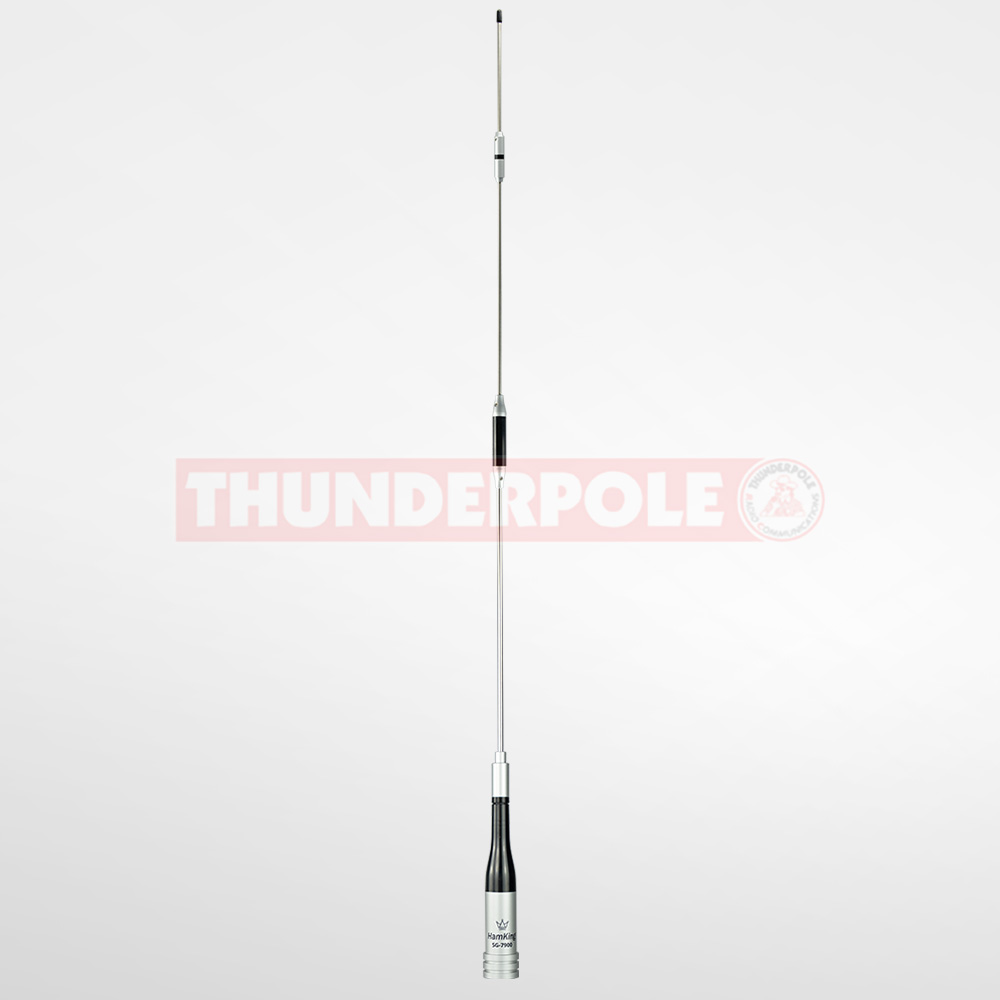

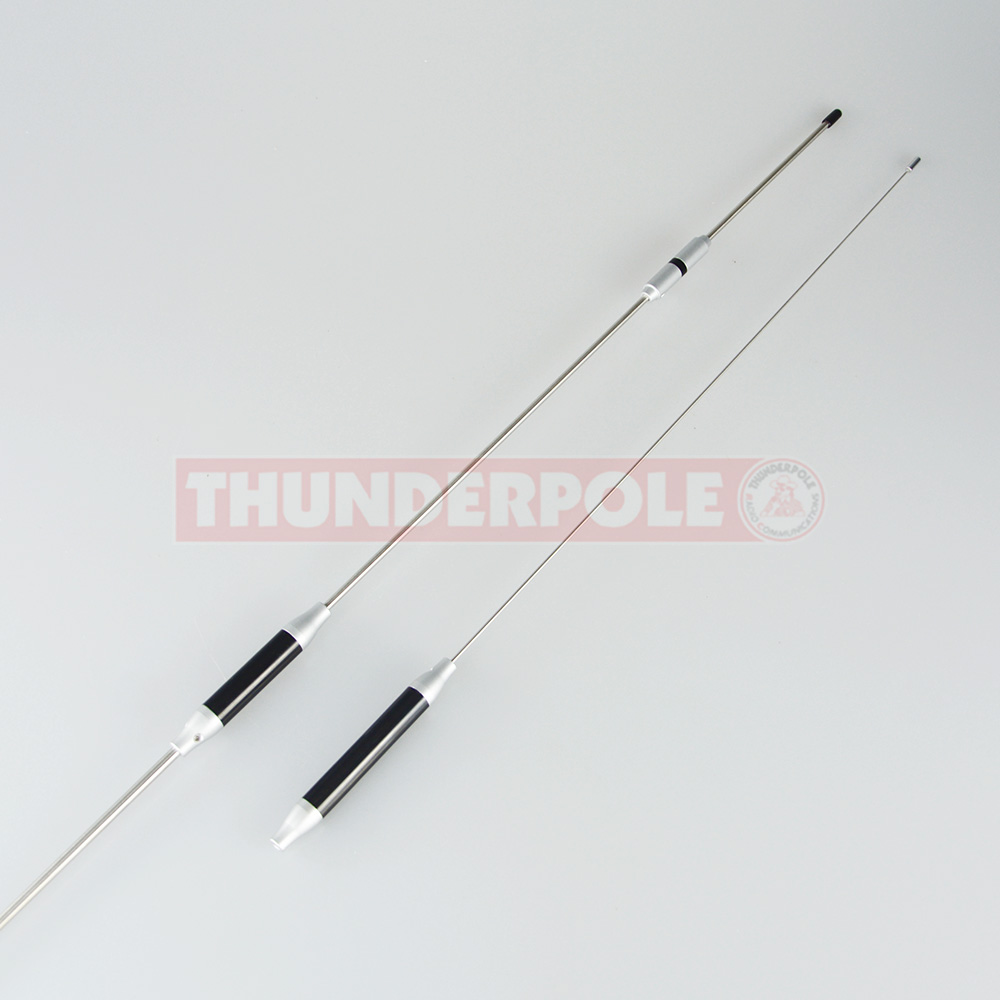

The HamKing SG-7900 is a pre-tuned mobile 2M/70cm 144/430mhz amateur band antenna is a high performance & good quality dual band Mobile antenna with double centre loaded whip for the 2m/70cm amateur bands.

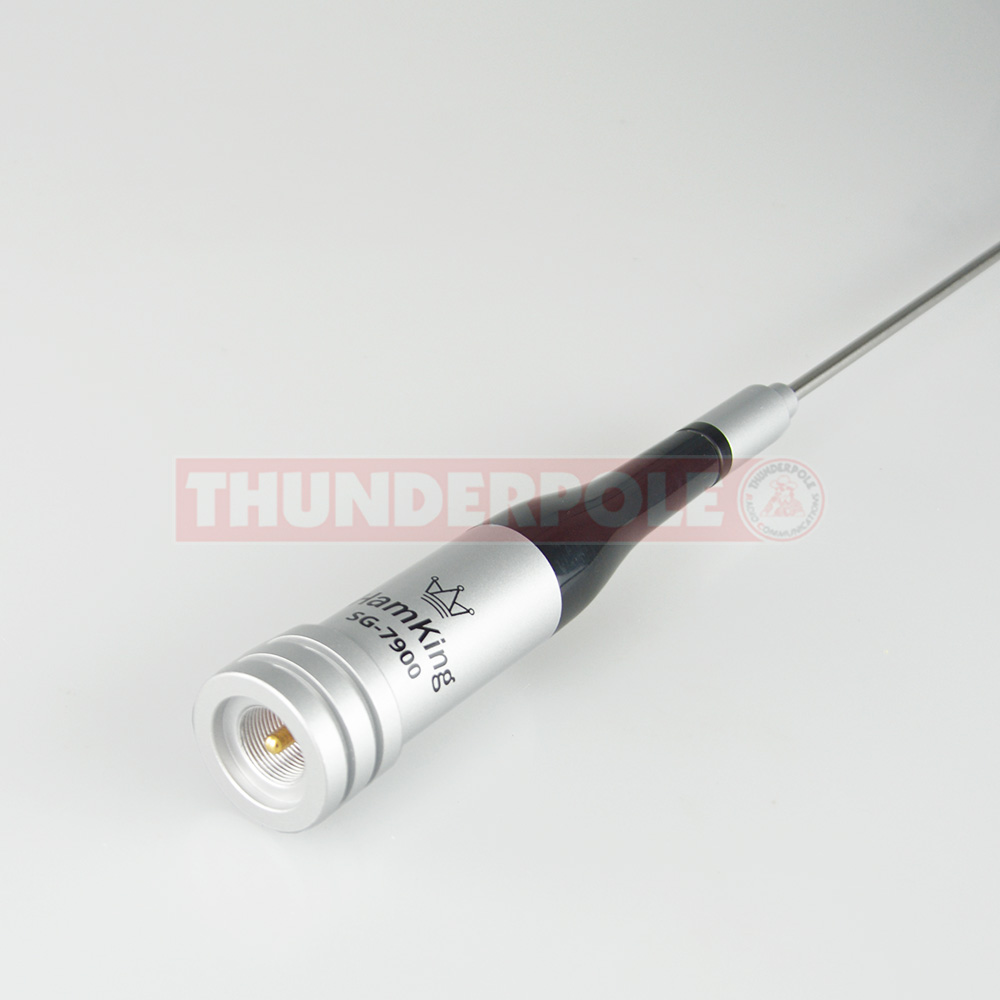

It has the same specification and style as the Diamond SG-7900 which sells for around £100!! It also features a "fold-over" knuckle and SO239 fitting.

Highly recommended mobile amateur aerial.

We use these!!!

Max. power: 150 W.

Specifications

Electrical Data:

  • Frequency band: VHF / UHF
  • Frequency: 144 / 430 MHz
  • Gain: 5.0 (144 MHz) / 7.6 dbi (430 MHz)
  • VSWR: <1.5
  • Power: 150 watts
  • Impedance: 50 Ohms
  • Type:7/8 wave double C-Load radialless (144 MHz), 3x5/8 wave C-Load radialless (430 MHz)
  • Radiation:Omnidirectional

Mechanical Data:

  • Weight: 480 gram
  • Lenght: 153 cm
  • Connector: UHF male
