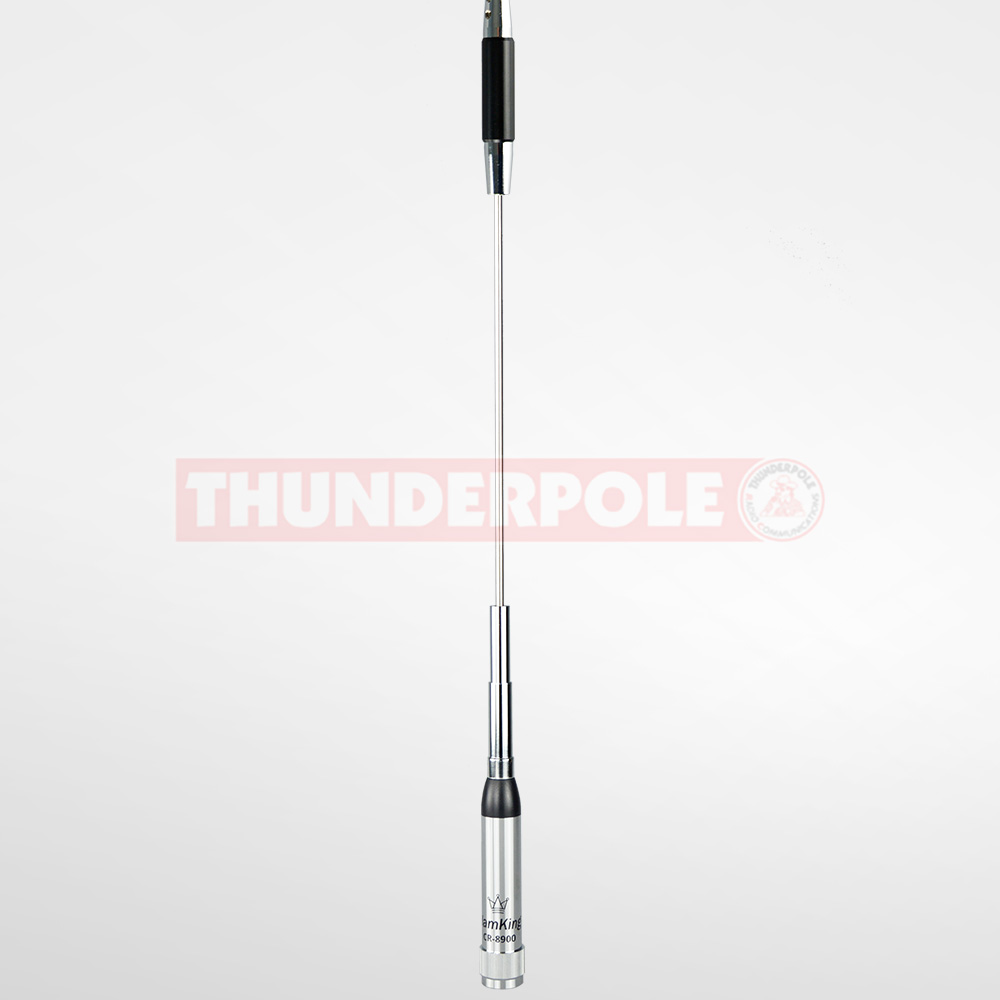

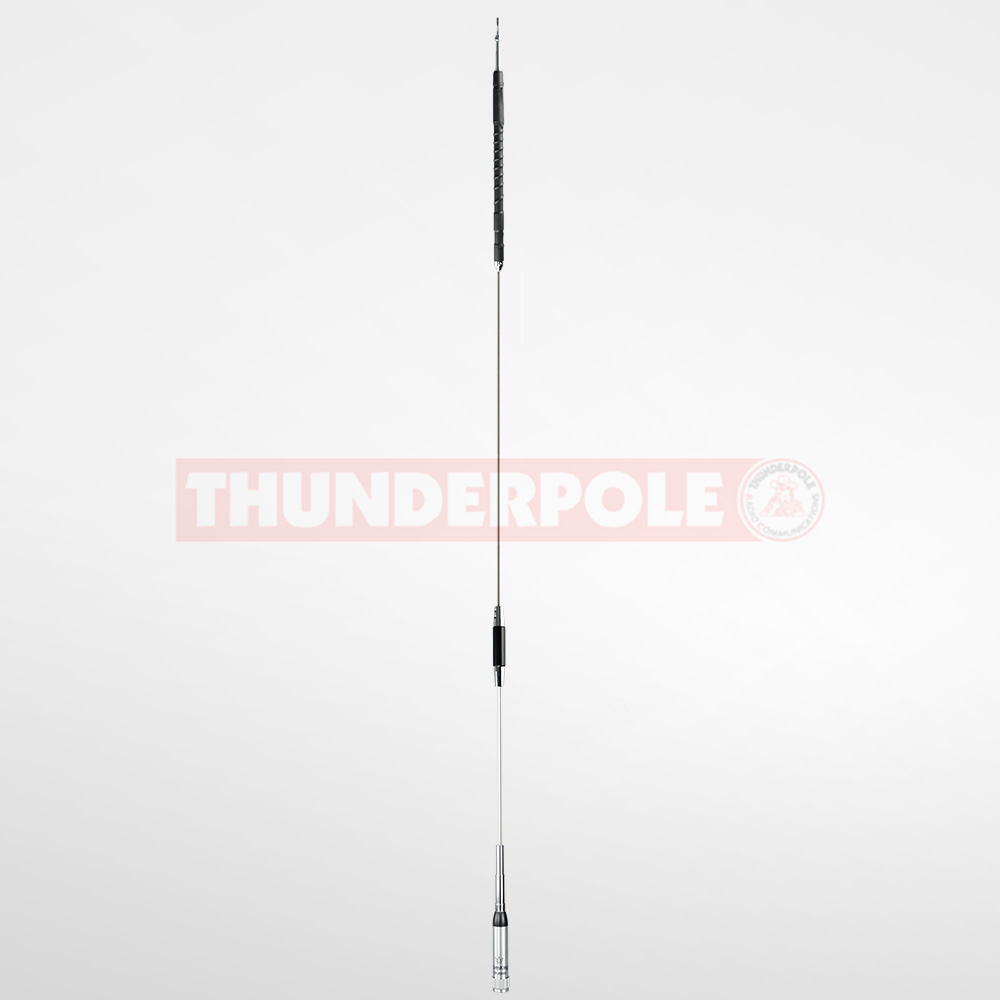

HamKing CR-8900 Quad Band Antenna
HamKing CR-8900 Quad Band AntennaHamKing CR-8900 Quad Band AntennaHamKing CR-8900 Quad Band AntennaHamKing CR-8900 Quad Band Antenna


HamKing CR-8900 Quad Band Antenna


Ref:  32HK-CR-8900
Bar Code:  8718375101261
Brand:  HamKing

Weight:  484 g

Availability:



Product information

The HamKing CR-8900 is a pre-tuned mobile antenna, for best performance on 29 MHz, 50 MHz, 144 MHz and 430 MHz. Sometimes a minor VSWR adjustment can be useful, which can be done by moving the antenna up/down at the base end. Length: 126 cm (app. 50"). Max. power: 60 W.

Specifications

Electrical Data:

  • Frequency band: HF / VHF / UHF
  • Frequency: 29 / 50 / 144 / 430 MHz
  • Gain: 2.15 dBi (144 MHz) / 5.5 dBi (430 MHz)
  • VSWR: <1.5
  • Power:60 watts
  • Impedance: 50 Ohms
  • Type: 1/4 wave (29/50 MHz), 1/2 wave radialless (144 MHz), 2x5/8 wave (430 MHz)
  • Radiation: Omnidirectional

Mechanical Data:

  • Weight: 490 gram
  • Lenght: 126 cm

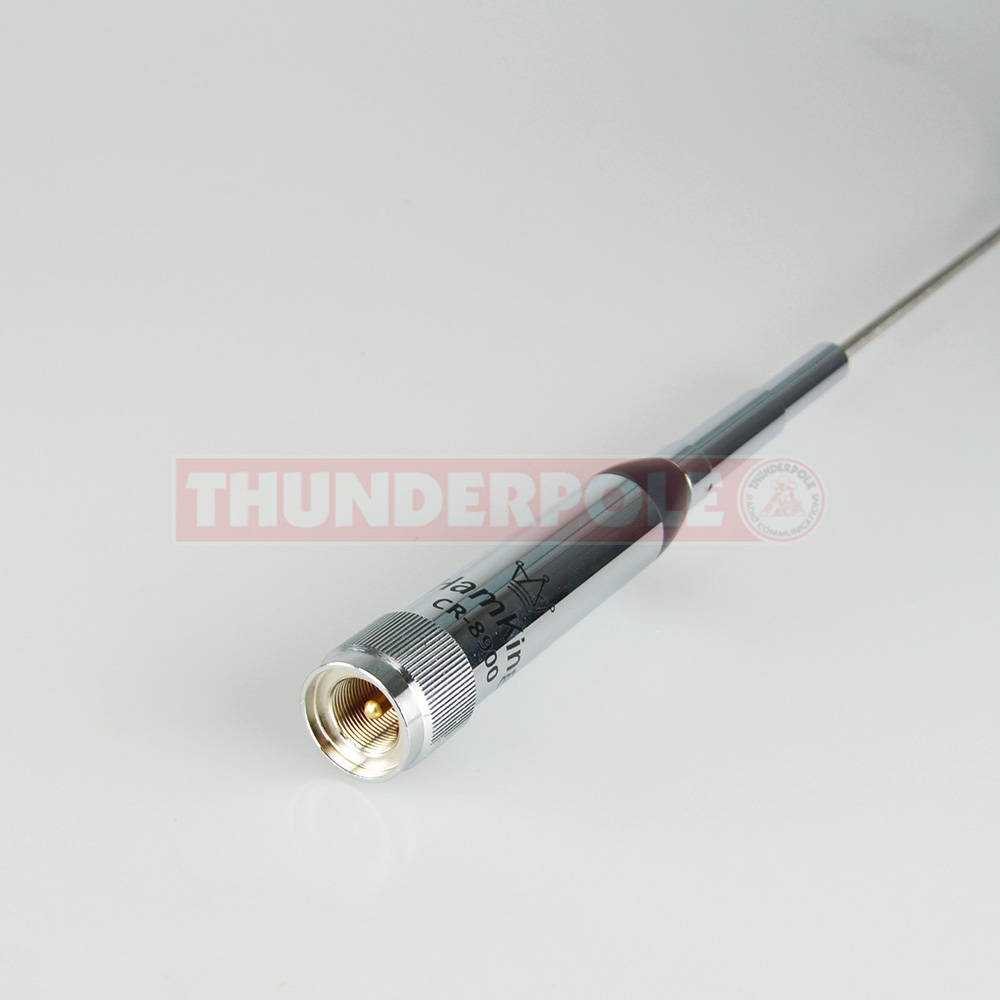

  • Connector: UHF male
