HamKing X-200N-2 Dual Band Antenna
HamKing X-200N-2 Dual Band AntennaHamKing X-200N-2 Dual Band AntennaHamKing X-200N-2 Dual Band Antenna
HamKing X-200N-2 Dual Band AntennaHamKing X-200N-2 Dual Band AntennaHamKing X-200N-2 Dual Band Antenna


HamKing X-200N-2 Dual Band Antenna


Ref:  32HK-X-200N-2
Bar Code:  8718375101223
Brand:  HamKing

Weight:  1.20kg

Availability:



Product information

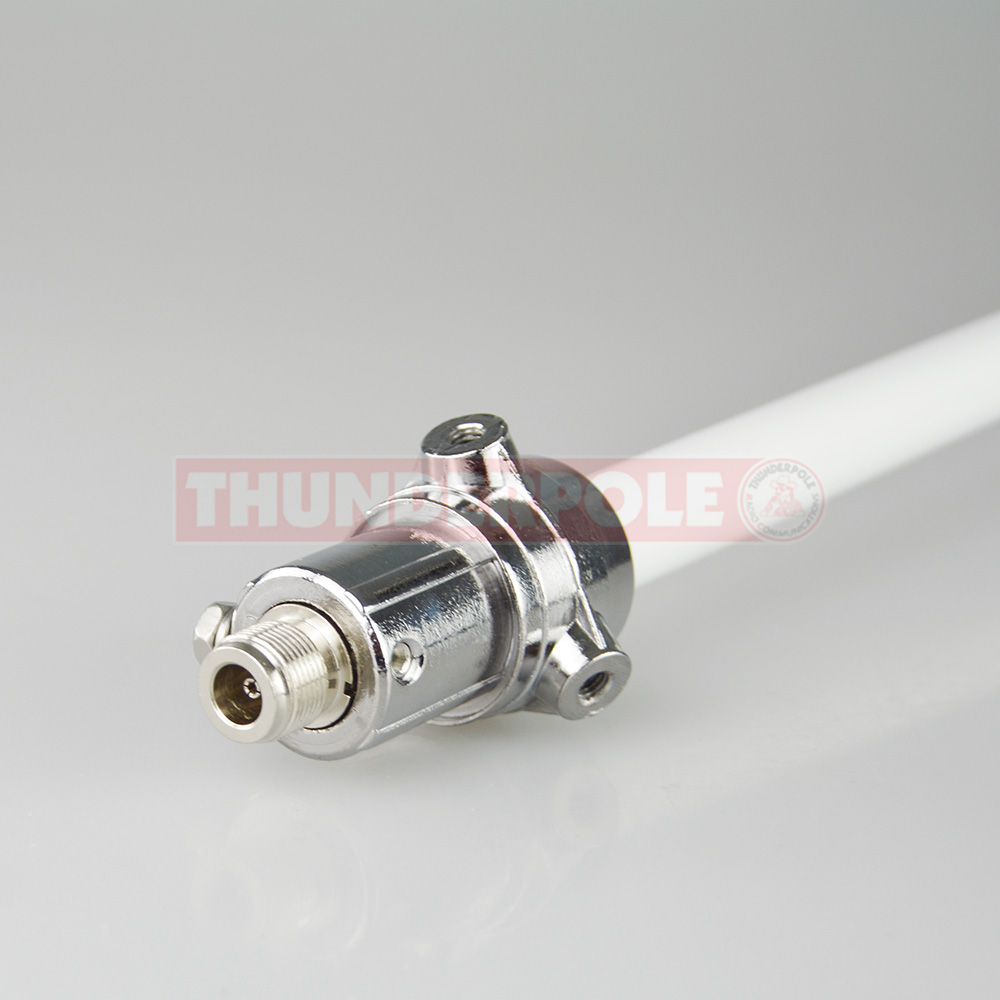

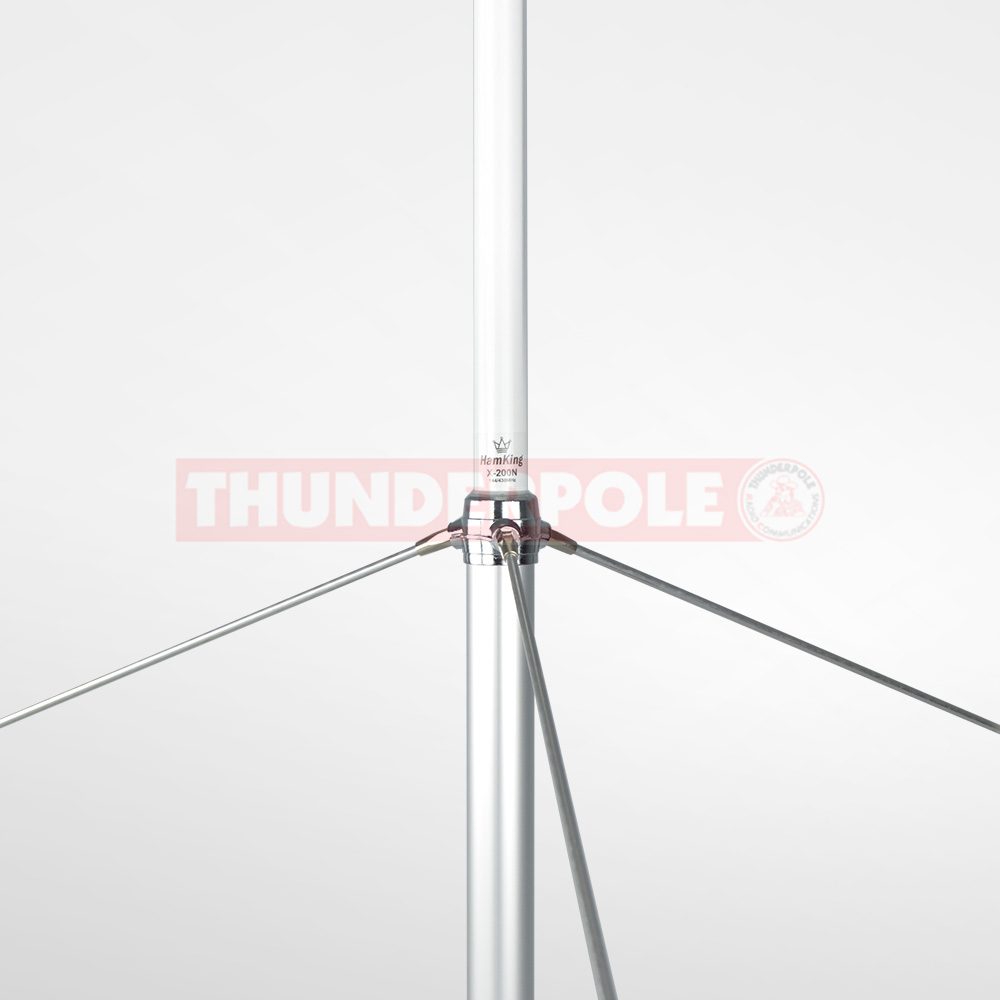

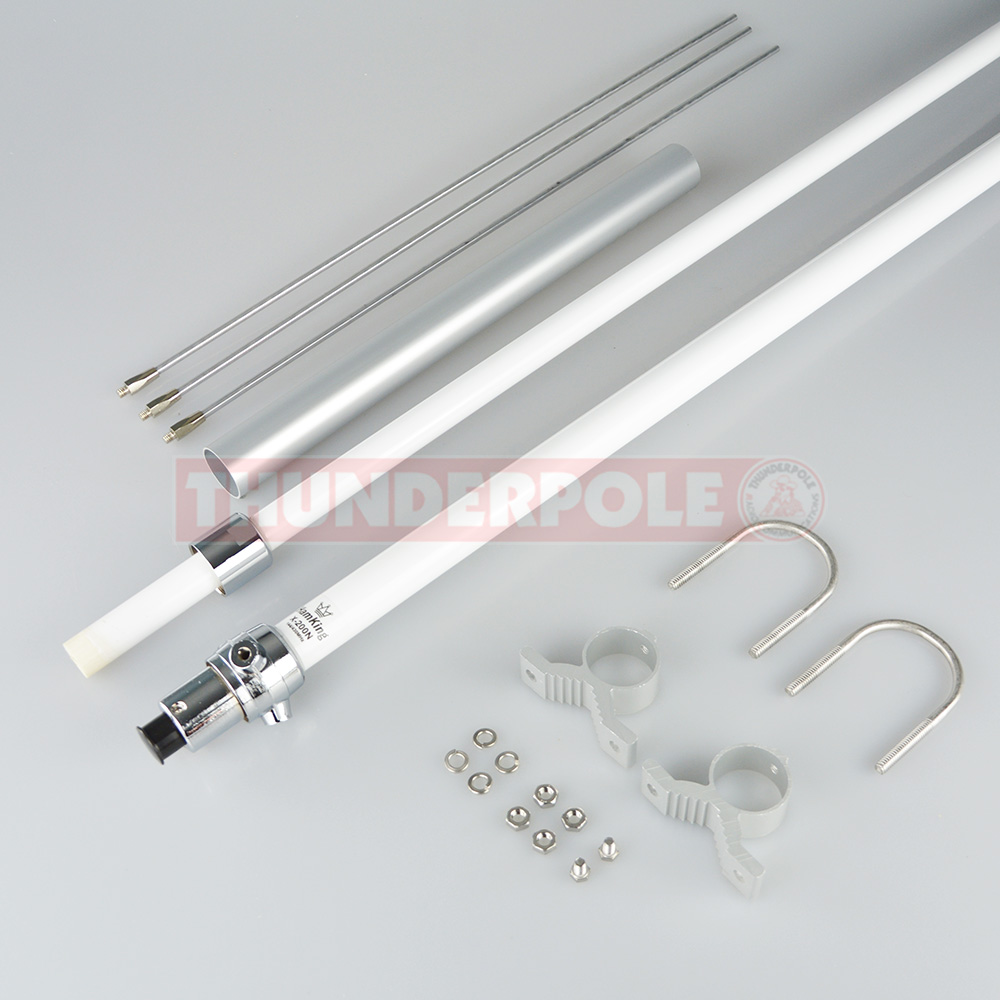

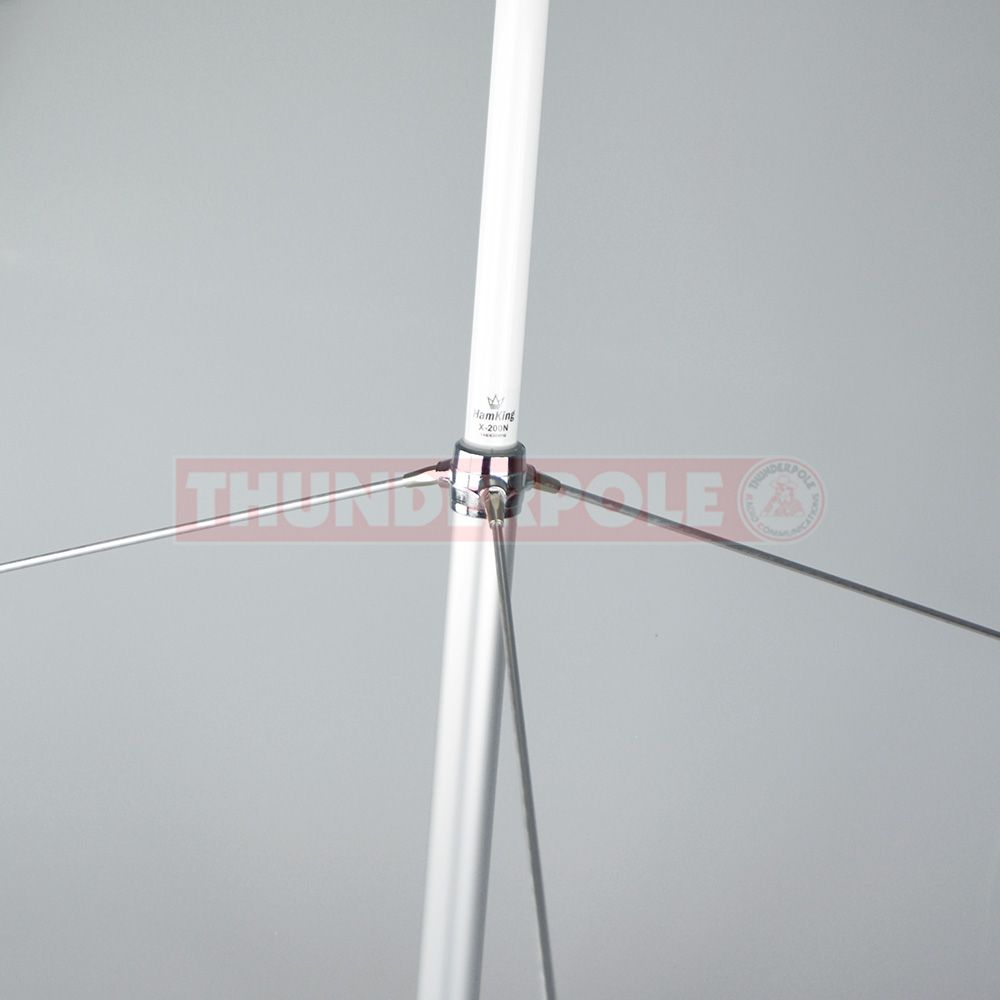

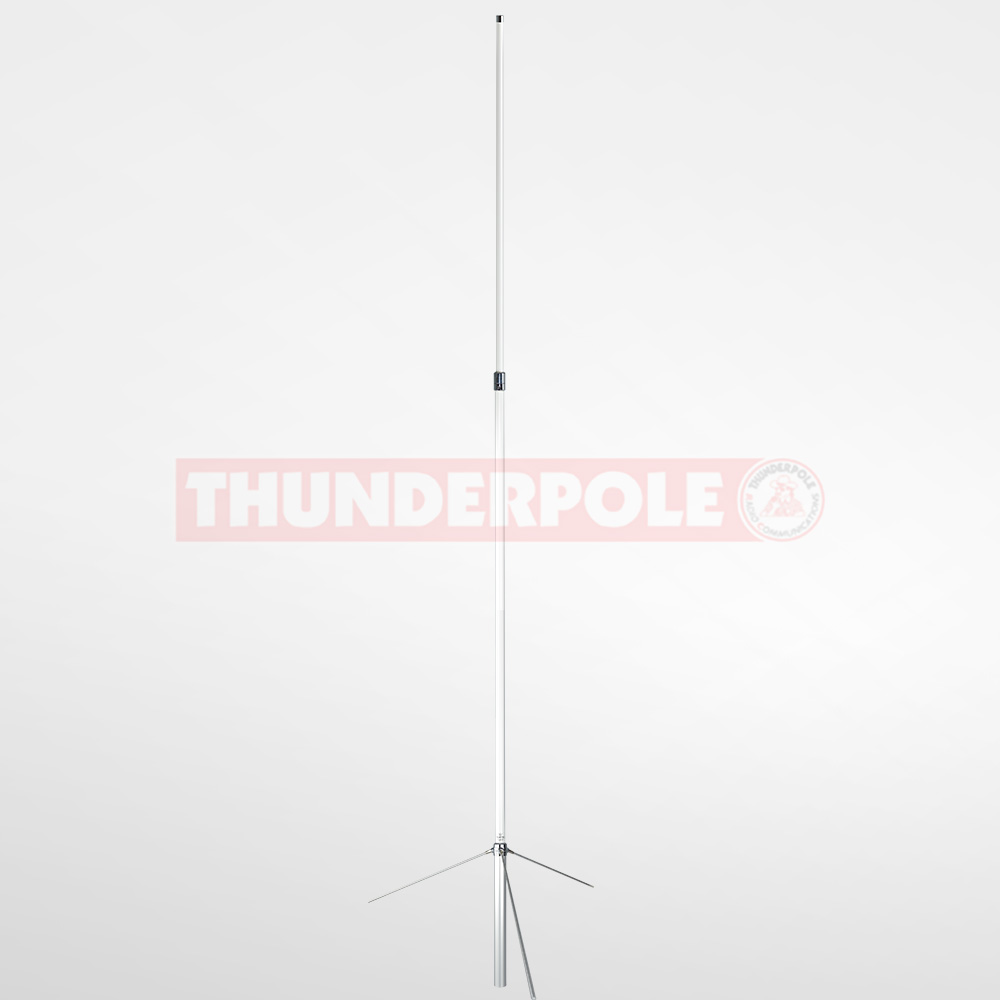

The HamKing X-200N vertical antenna for 144 MHz (6.0 dBi gain) and 430 MHz (8.0 dBi gain) consists of a fibre glass rod construction, which will be delivered pre-tuned and fully weatherproofed. Mast mounting brackets are included. Fitted with a low loss N-connector for best performance. Maximum power: 200 watts.

Specifications

Electrical Data:

  • Frequency band: VHF/UHF
  • Frequency: 144/430 Mhz
  • Gain:6.0 dBi (144 MHz), 8.0 dBi (430 MHz)
  • VSWR: <1.5
  • Power: 200 watts
  • Impedance: 50 Ohms
  • Type: 2x5/8 wave (144 MHz), 4x5/8 wave (430 MHz)
  • Radiation: Omnidirectional

Mechanical Data:

  • Weight: 1200 gram
  • Lenght: 250 cm (two parts)
  • Connector: N male
  • Mast Ø: 30 - 48 mm
  • Max wind resistance: 50 m/sec (180 km/h)
