HamKing X-30N Dual Band Antenna
HamKing X-30N Dual Band AntennaHamKing X-30N Dual Band AntennaHamKing X-30N Dual Band Antenna
HamKing X-30N Dual Band AntennaHamKing X-30N Dual Band AntennaHamKing X-30N Dual Band Antenna


HamKing X-30N Dual Band Antenna


Ref:  32HK-X-30N
Bar Code:  8718375101209
Brand:  HamKing

Weight:  733 g

Availability:



Product information

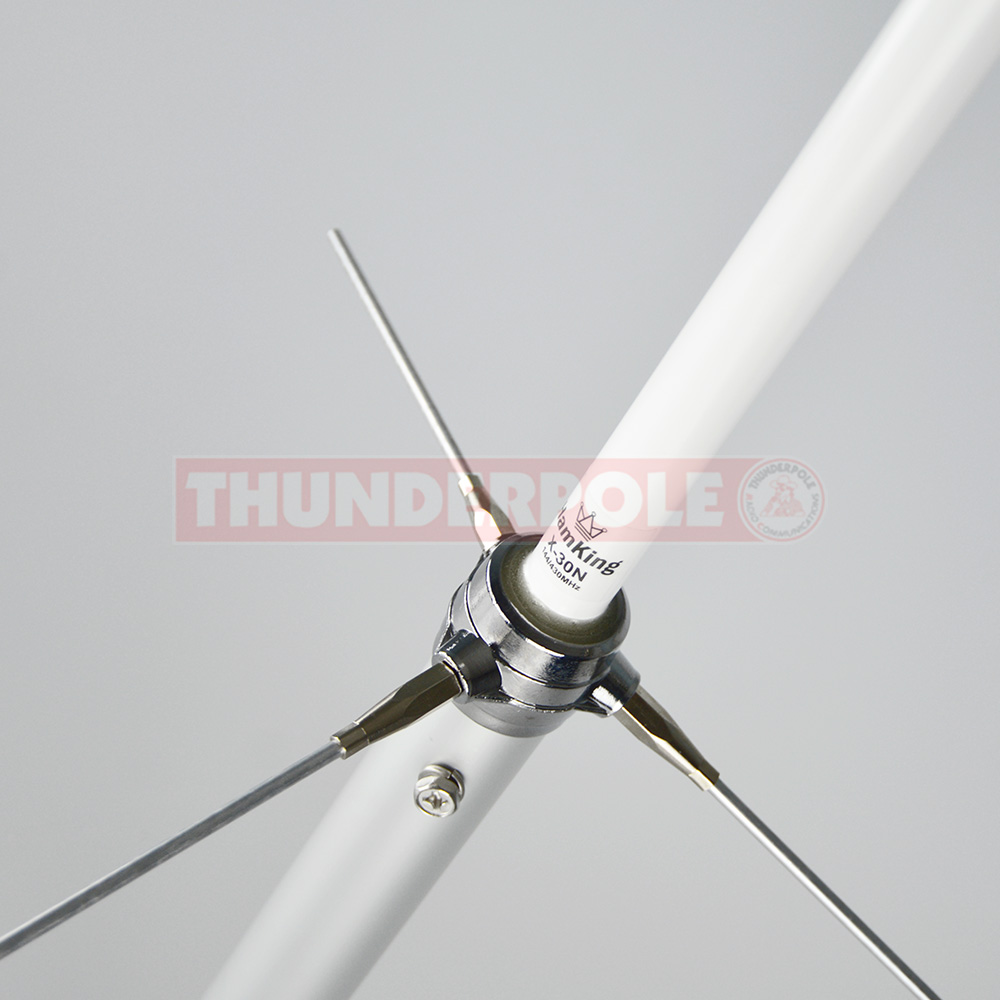

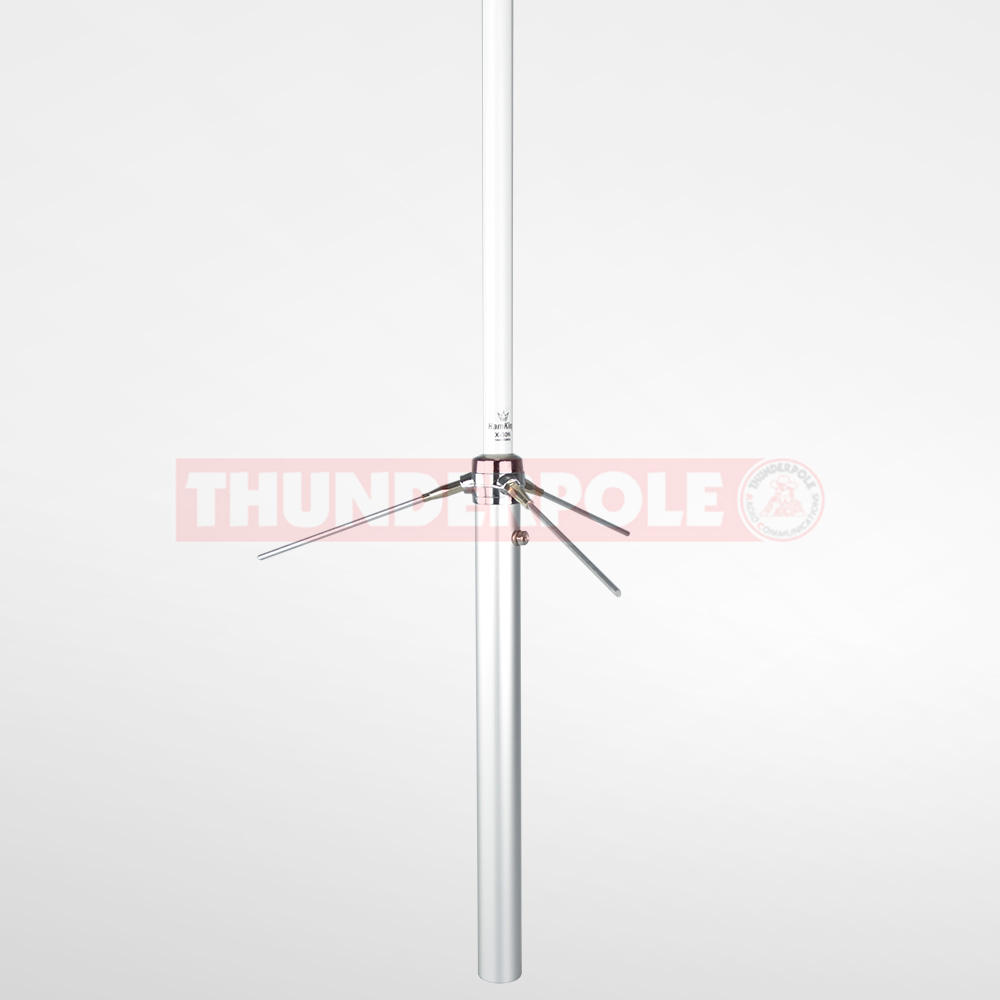

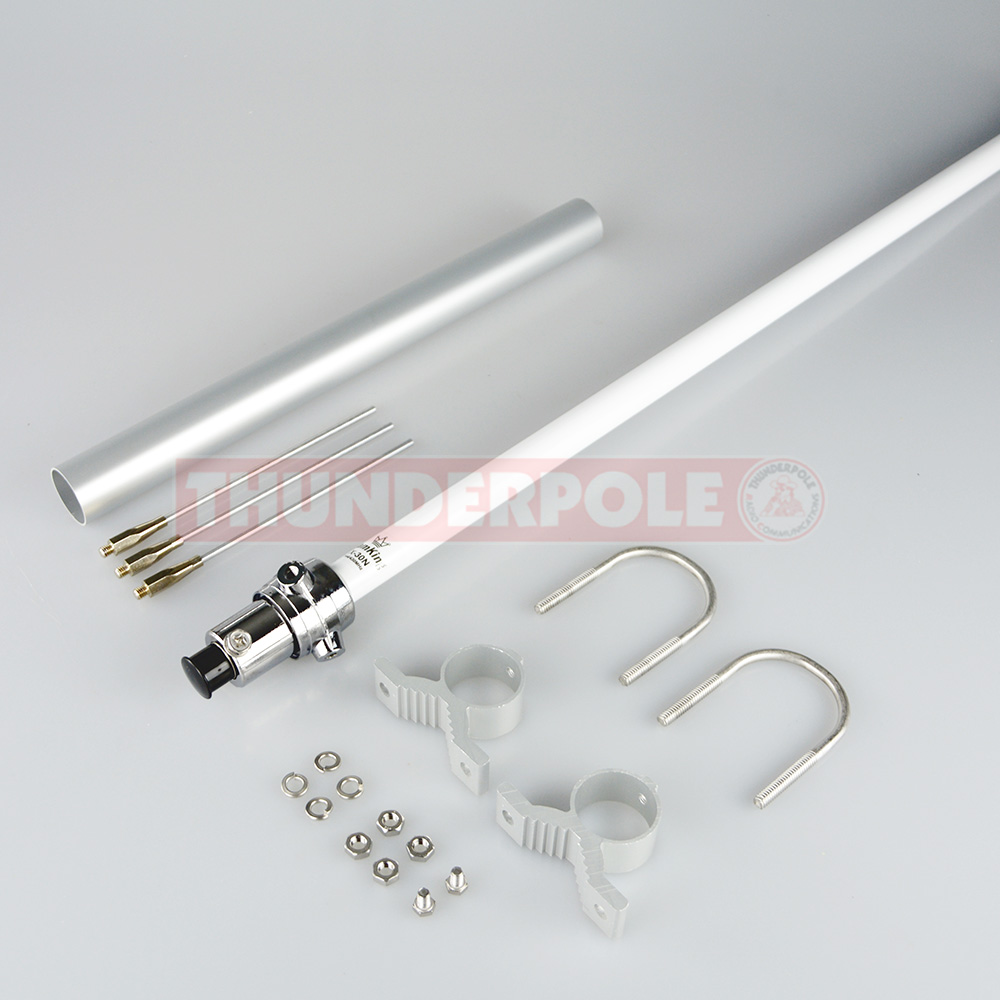

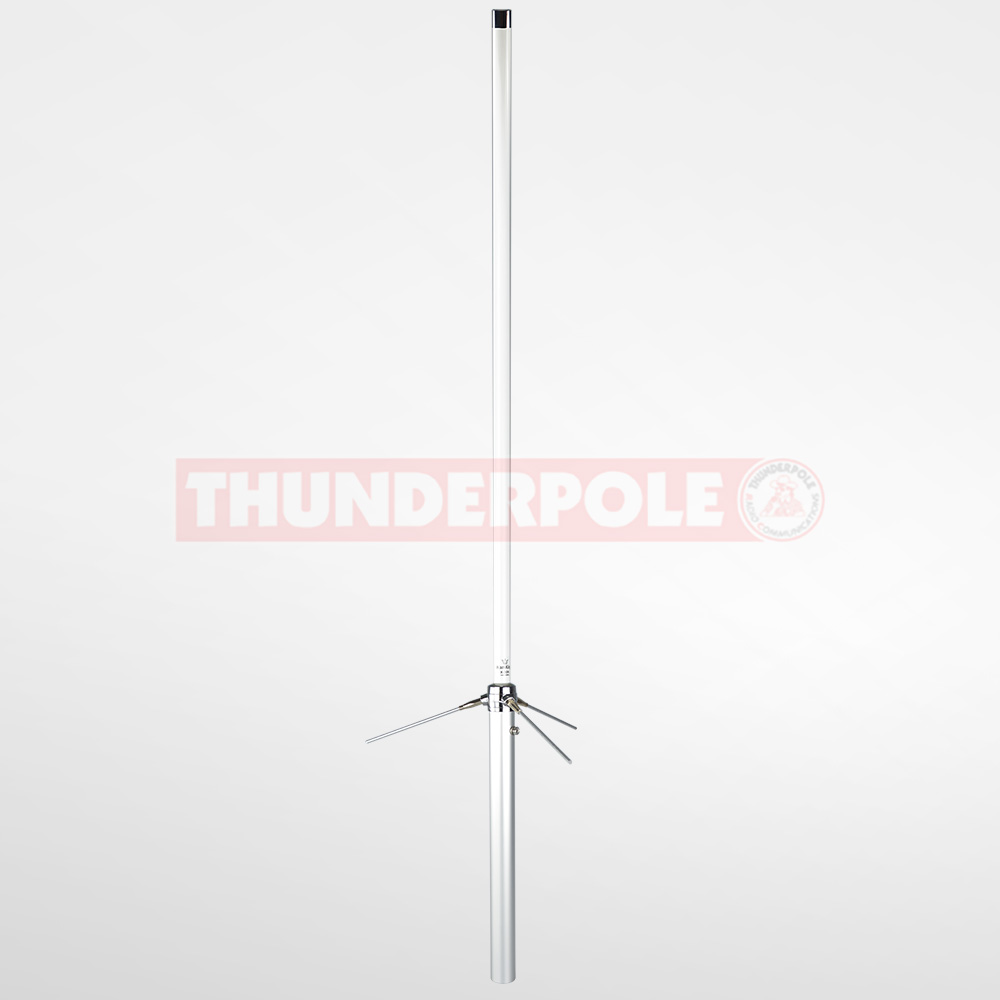

The HamKing X-30N vertical antenna for 144 MHz (3.0 dBi gain) and 430 MHz (5.5 dBi gain) consists of a fibre glass rod construction, which will be delivered pre-tuned and fully weatherproofed. Mast mounting brackets are included. Fitted with a low loss ‘N’-connector for best performance. Maximum power: 200 watts.

Specifications

Electrical Data:

  • Frequency band: VHF/UHF
  • Frequency: 144/430 Mhz
  • Gain:3 dBi (144MHz) / 5.5 dBi (430MHz)
  • VSWR: <1.5 Power: 150 watts
  • Impedance: 50 Ohms
  • Type: 1/2 wave element (144 MHz), 2x5/8 wave element (430 MHz)
  • Radiation: Omnidirectional

Mechanical Data:

  • Weight: 700g
  • Lenght: 130 cm

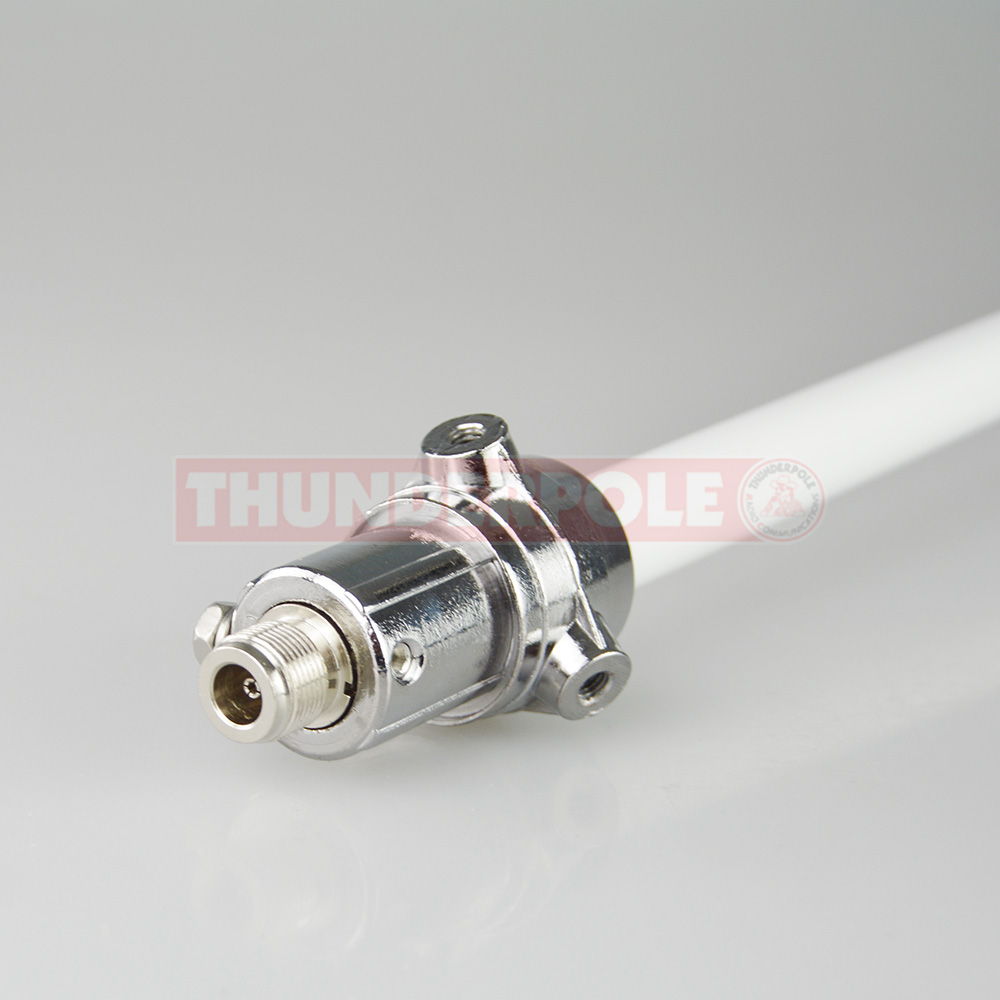

  • Connector: N male
  • Mast Ø: 30 - 48 mm
  • Max wind resistance: 60 m/sec (216 km/h)
